Energy Series

Polystyrene insulated commercial steel doors with R-Values to 9.1.

Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service.

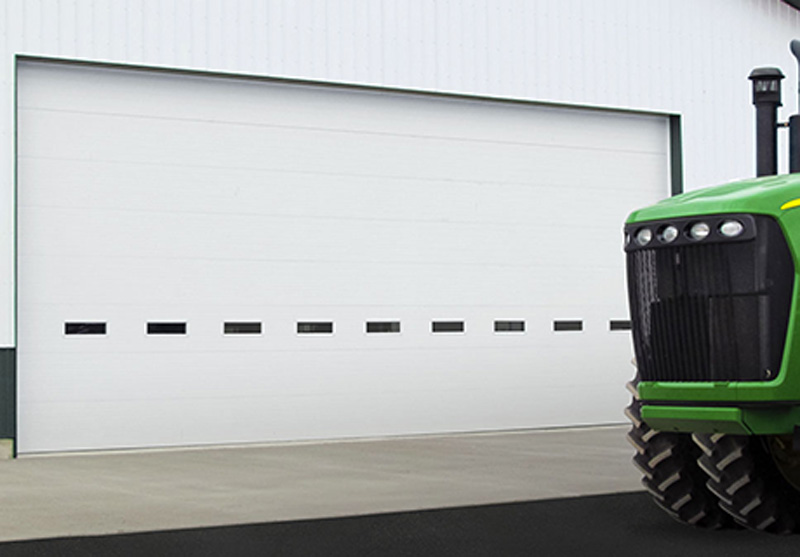

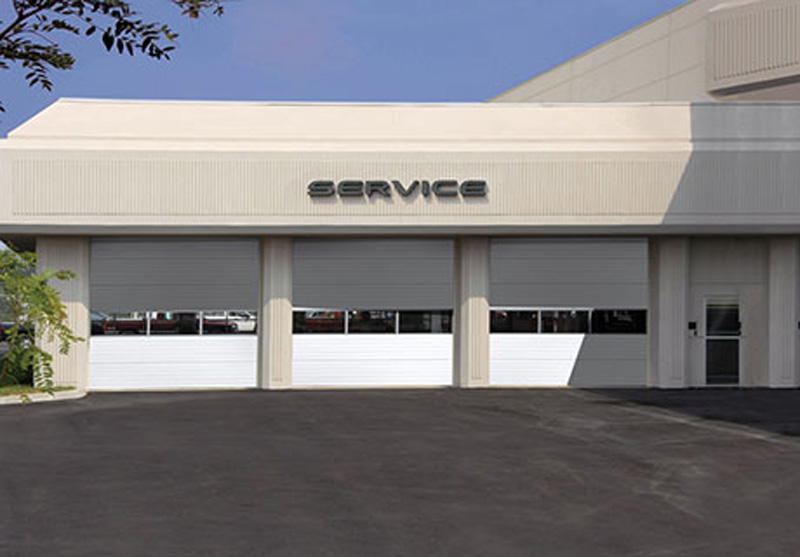

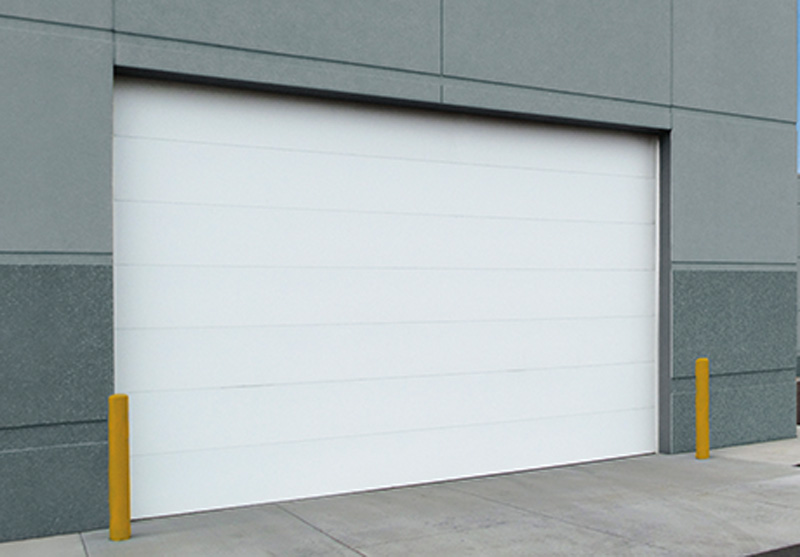

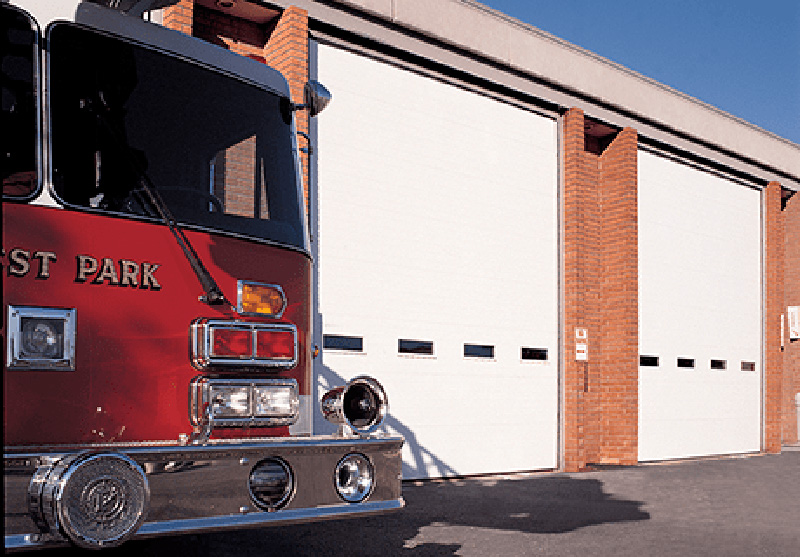

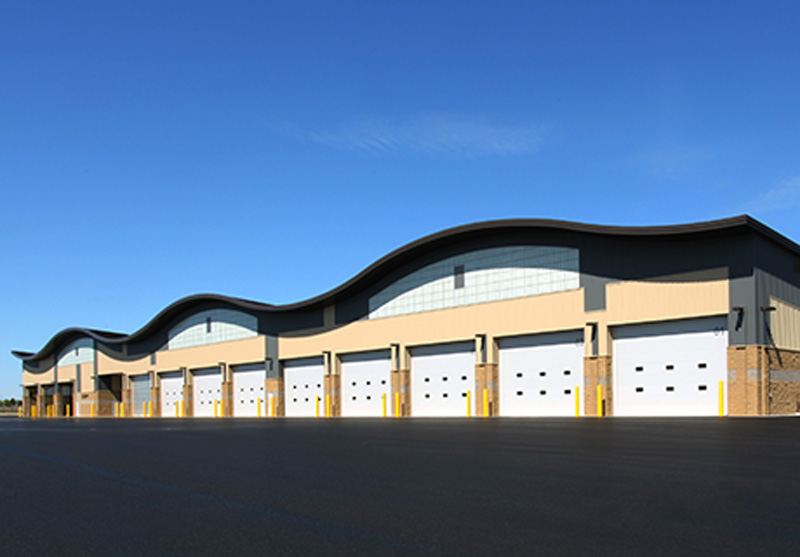

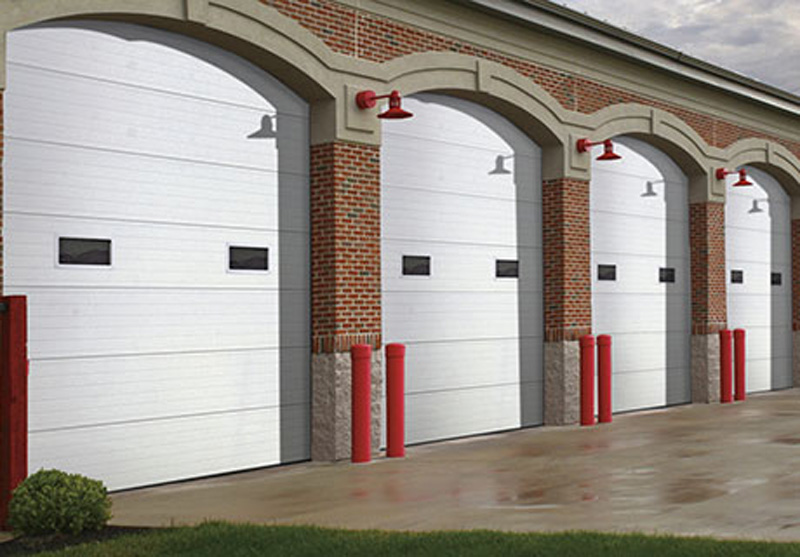

These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

Overview

Energy Series

Model 3220

  • Thickness: 2"
  • Emboss: Stucco
  • Exterior Gauge: 20
  • Pattern: Flush
  • R-Value: 9.1
  • Thermal Break: Yes
  • Maximum Width: 26' 2"
  • Maximum Height: 20' 0"

Model 3213

  • Thickness: 2"
  • Emboss: Woodgrain
  • Exterior Gauge: 24
  • Pattern: Raised panel
  • R-Value: 9.1
  • Thermal Break: Yes
  • Maximum Width: 24' 2"
  • Maximum Height: 18' 0"

Model 3211

  • Thickness: 2"
  • Emboss: Woodgrain
  • Exterior Gauge: 24
  • Pattern: Raised panel
  • R-Value: 9.1
  • Thermal Break: Yes
  • Maximum Width: 24' 2"
  • Maximum Height: 18' 0"

Model 3200

  • Thickness: 2"
  • Emboss: Stucco
  • Exterior Gauge: 24
  • Pattern: Minor Ribbed
  • R-Value: 9.1
  • Thermal Break: Yes
  • Maximum Width: 26' 2"
  • Maximum Height: 20' 0"

Model 3155

  • Thickness: 1-3/8"
  • Emboss: Woodgrain
  • Exterior Gauge: 27
  • Pattern: Flush panel
  • R-Value: 6.5
  • Thermal Break: Yes
  • Maximum Width: 16' 0"
  • Maximum Height: 16' 0"

Model 3154

  • Thickness: 1-3/8"
  • Emboss: Woodgrain
  • Exterior Gauge: 27
  • Pattern: Raised panel
  • R-Value: 18.4
  • Thermal Break: Yes
  • Maximum Width: 16' 0"
  • Maximum Height: 16' 0"

Model 3150

  • Thickness: 1-3/8"
  • Emboss: Stucco
  • Exterior Gauge: 27
  • Pattern: Minor Ribbed
  • R-Value: 18.4
  • Thermal Break: Yes
  • Maximum Width: 16' 0"
  • Maximum Height: 16' 0"

Construction

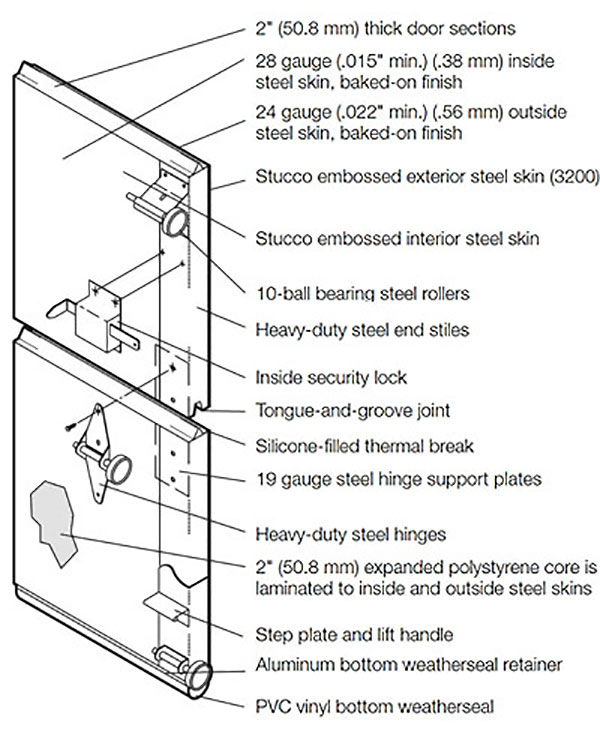

Model 3200 / 3211 / 3212 / 3213 / 3220

  • Panel Design: 2" thick stucco embossed steel with light ribbed (3200) or flush (3220) pattern Steel
  • Gauge:
    • 24 gauge (.22" min) exterior (3200)
    • 20 gauge (.034" min) exterior (3220)
    • 27 gauge (.016" min) interior
  • Joint Design: Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section
  • Thermal Conductivity: R-value 9.1*
  • Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
  • Colors:
    • Pre-painted white, brown, tan or gray (3200)
    • Pre-painted white or brown (3220)
    • Trinar white (3200)
  • Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

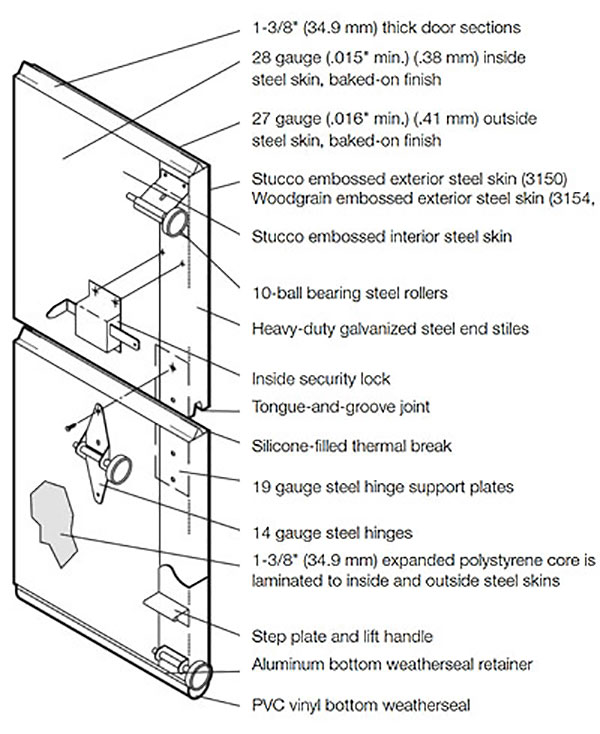

Model 3150 / 3154 / 3155

  • Panel Design:
    • 1-3/8" thick stucco embossed steel with micro groove pattern (3150)
    • 1-3/8" thick rasied woodgrain embossed steel (3154)
    • 1-3/8" thick flush woodgrain embossed steel (3155)
  • Steel Gauge:
    • 27 gauge (.016" min) exterior;
    • 27 gauge (.016" min) interior
  • Joint Design: Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section
  • Thermal Conductivity: R-value 6.5*
  • Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
  • Colors:
    • Pre-painted white, brown, commercial tan & gray (3150)
    • Pre-painted white, brown, desert tan, hunter green, almond, sandstone, bronze (3154, 3155)
  • Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship

Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increased security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles
  • 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factor
  • 2” or 3” track in a variety of configurations to meet building design requirements

Commercial Track Applications

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.

Options

Polystyrene doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options

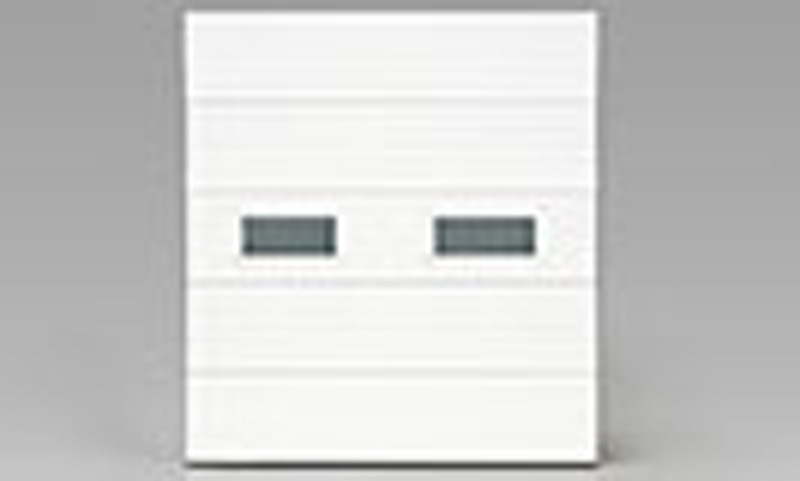

  • Windows
  • 24"x8"24"x12"

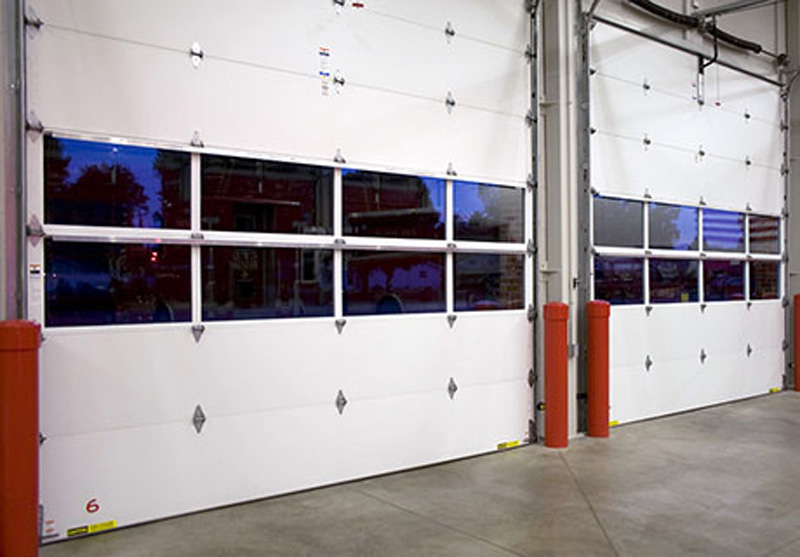

  • Full View (pre-painted white or brown or clear anodized)
  • Black frame Window with Rounded Corners

Colors

  • White - All Models
  • Glacier White - 3150
  • Trinar® White - 3200, 3211, 3213
  • Chocolate - All Models
  • Mocha Brown - 3150
  • Black - 3200
  • Commercial Tan - 3150, 3200
  • Gray - 3150, 3154, 3155, 3200
  • Charcoal - 3150, 3158, 3159
  • Desert Tan - 3154, 3155, 3211, 3213
  • Trinar® Beige - 3211, 3213
  • Hunter Green - 3154, 3155
  • Sandtone - 3154, 3155, 3211, 3213
  • Almond - 3154, 3155, 3211, 3213
  • ColorBlast - All models

Performance Options

  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rating
  • Photo eyes, sensing edges and Operators
  • Extended 8-Year Hardware Warranty
  • Header (top) and Jamb Seals
  • High Performance Hardware Upgrade

Custom Options

  • Mullions
  • Breakaway Sections
  • Pass Door
