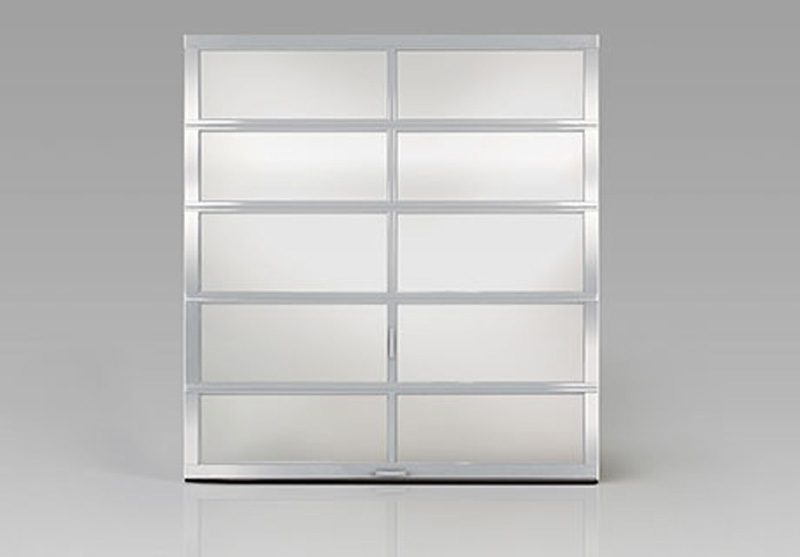

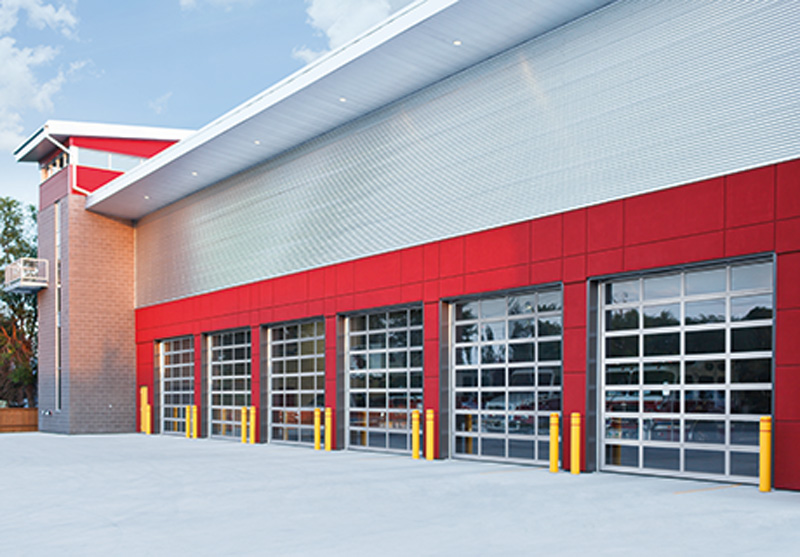

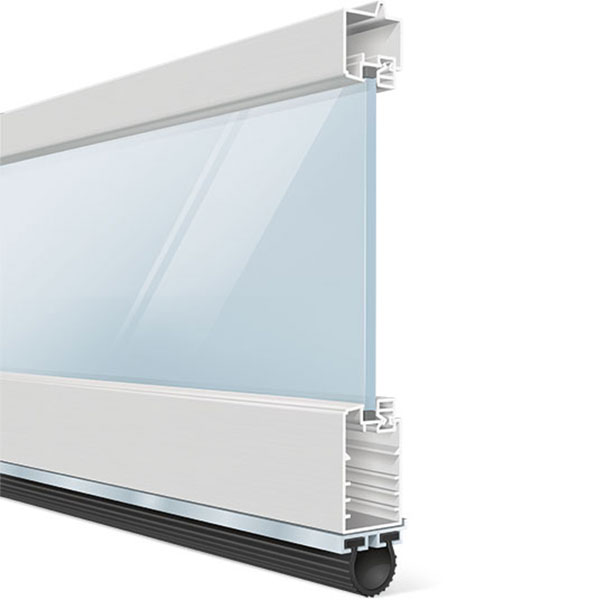

Aluminum Full-View Doors

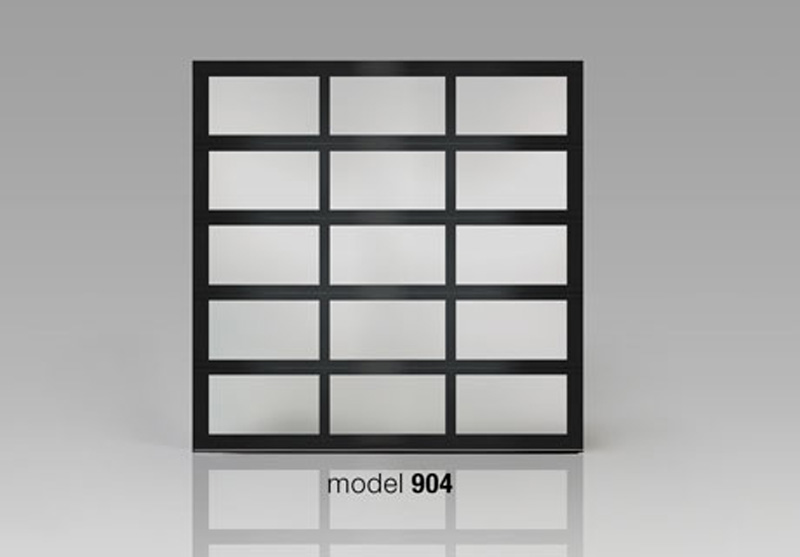

Model 904

• Exterior Skin Pattern: Recessed aluminum panel
• Exterior Aluminum Gauge: 6063-T5 Aluminum
• Colors: Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized)
• Warranty: Limited 5-year finish / 1-year material and workmanship

•
  Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
•

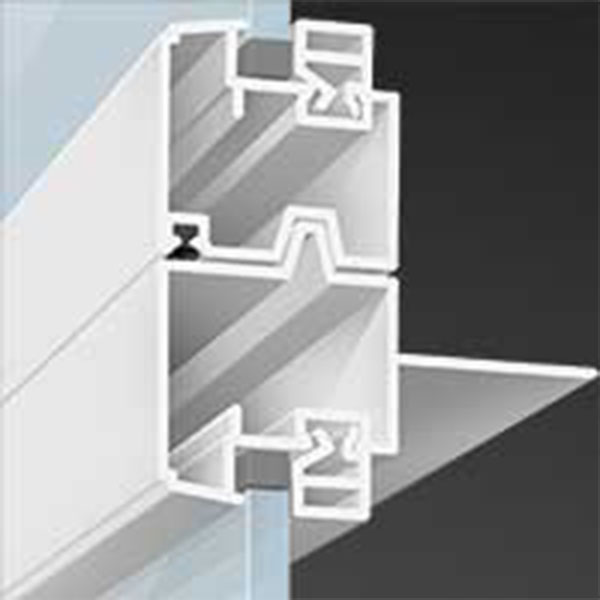

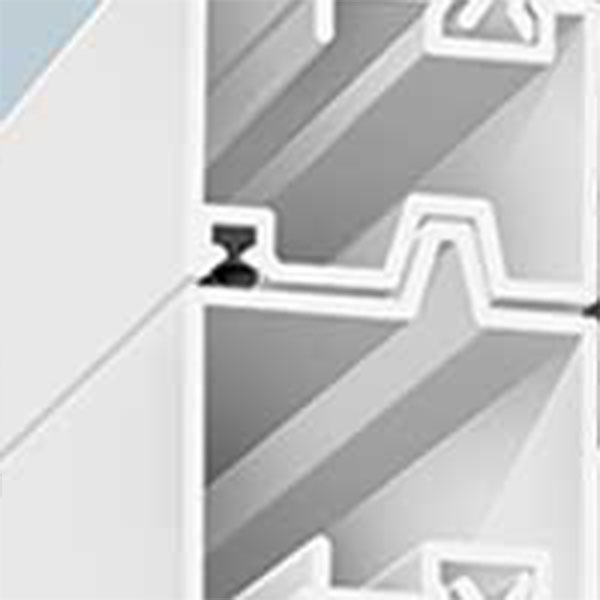

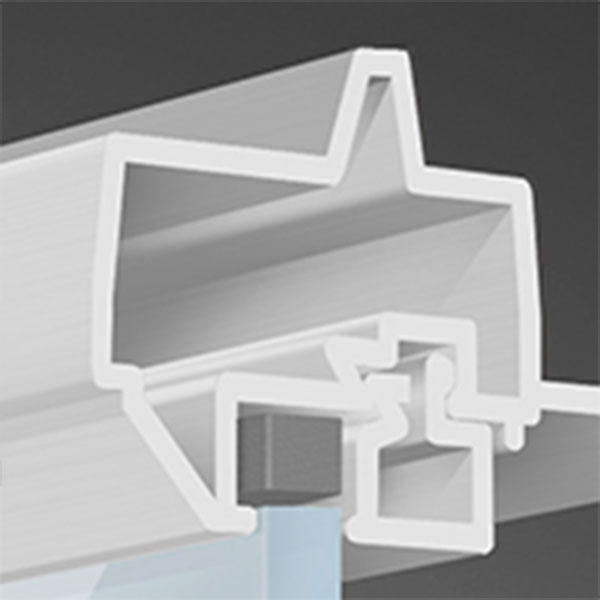

  Tongue-and-groove with integral joint seal for further reduction of air and water infiltration.
•

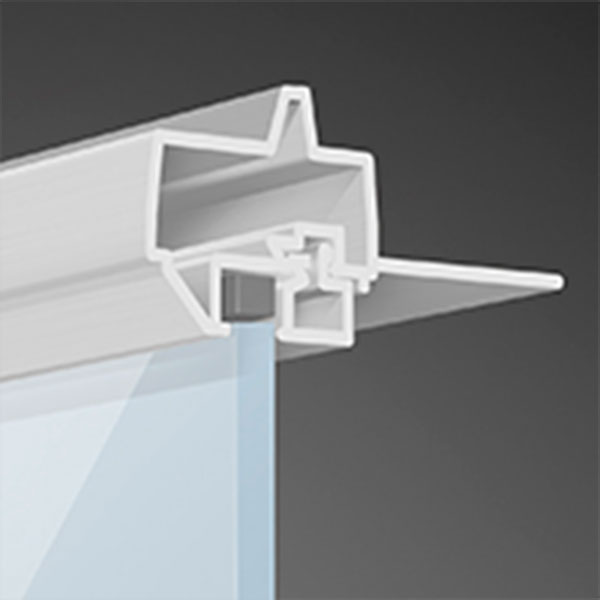

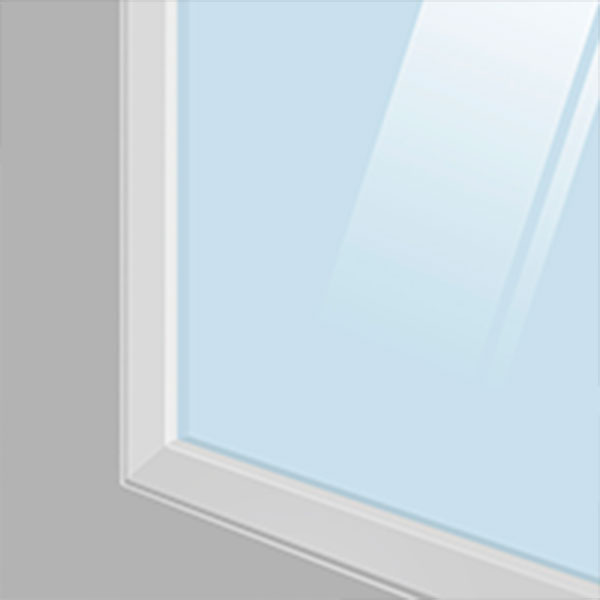

  Smooth flat frame edge design for a more contemporary look.
•
  Reinforcing fin included on doors wider than 14’. Doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.

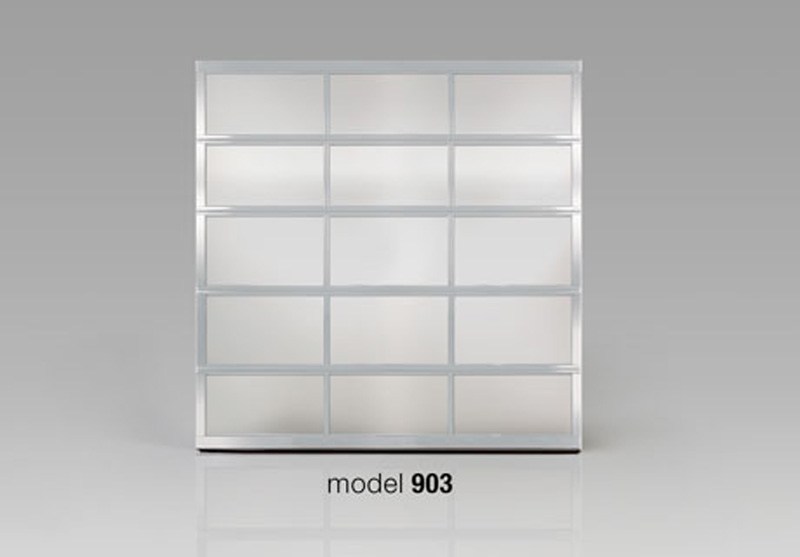

Model 903

• Exterior Skin Pattern: Recessed aluminum panel
• Exterior Aluminum Gauge: 6063-T5 Aluminum
• Colors: Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized)
• Warranty: Limited 5-year finish / 1-year material and workmanship

•
  Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
•
  Tongue and groove section.
•

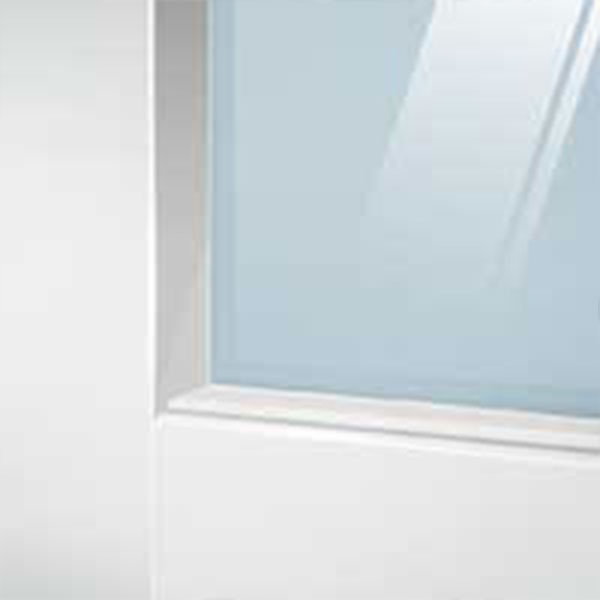

  Slanted beveled frame edge design for a classic look.
•
  Reinforcing fin included on all doors.

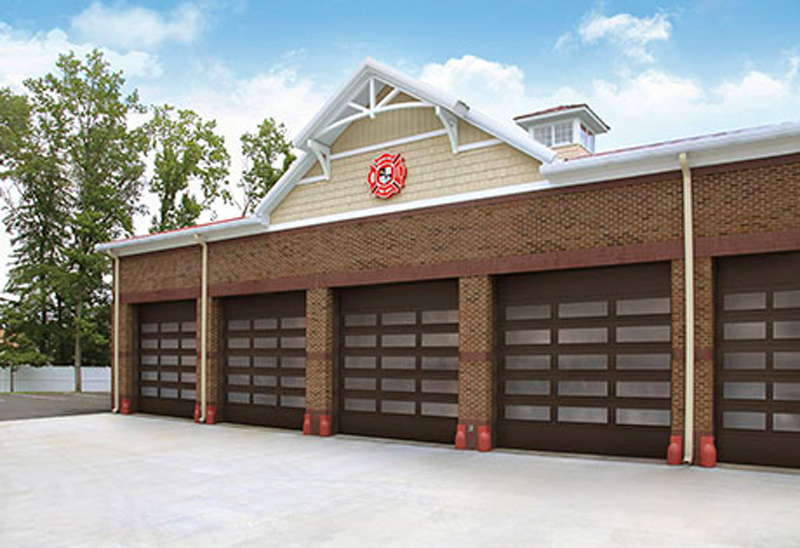

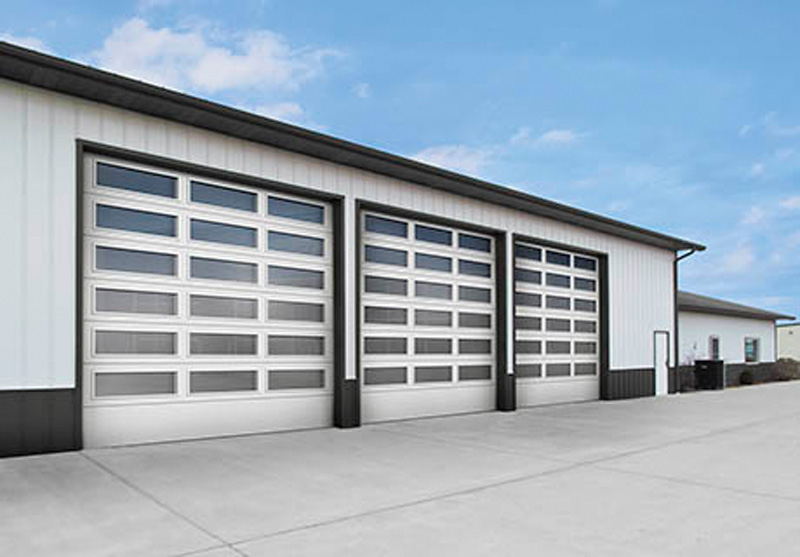

Steel Insulated Full-View Doors

All of our Steel Insulated Door models come with the following:

• Joint Design: Tongue and groove section with continuous foam thermal break prevents cold or heat from passing through the section
• Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
• Warranty: Limited 10-year paint/ 10-year delamination / 1 year material and workmanship / 1 year hardware

Models 3728/3729

• Panel Design:
  • (3728) 2” stucco embossed steel flush steel exterior
  • (3729) 2” thick stucco embossed steel exterior with minor ribbed pattern
• Steel Gauge: 27 (.016” min) exterior; 28 (.015” min)
• Colors: White, Glacier White, Chocolate, Mocha Brown, Black, Gray, Trinar White, Almond, Sandstone, Desert Tan, Bronze

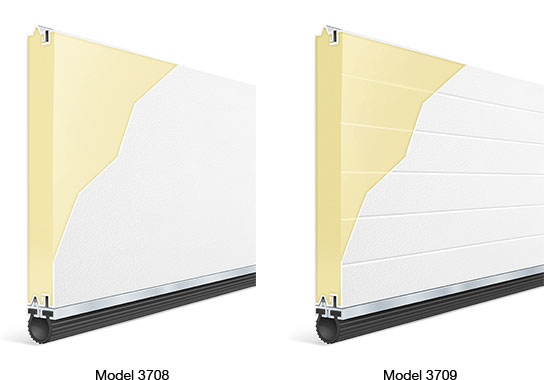

Models 3708/3709

• Panel Design:
  • (3708) 1-3/8” stucco embossed steel flush steel exterior
  • (3709) 1-3/8” stucco embossed steel exterior with minor ribbed pattern
• Steel Gauge: 27 (.016” min) exterior; 28 (.015” min)
• Colors: Standard White, Glacier White, Chocolate, Mocha Brown, Black, Trinar White, Almond, Sandstone, Desert Tan, Bronze

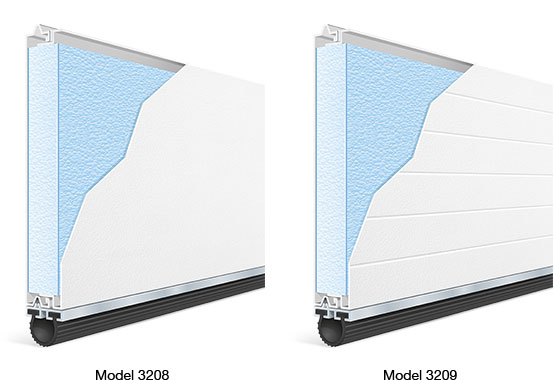

Models 3208/3209

• Panel Design:
  • (3208) 2” stucco embossed steel flush steel exterior
  • (3209) 2” stucco embossed steel exterior
• Steel Gauge: 27 (.016” min) exterior; 28 (.015” min)
• Colors: Standard White, Chocolate, Black, Gray, Charcoal, Trinar White

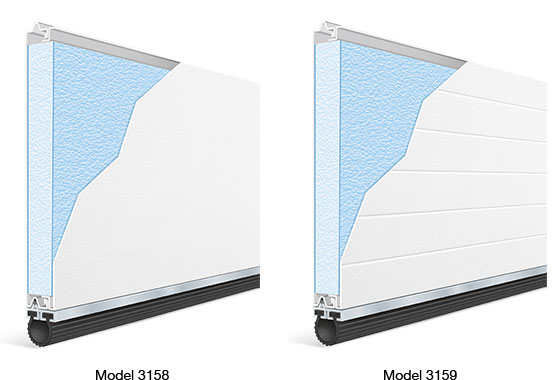

Models 3158/3159

• Panel Design:
  • (3158) 1-3/8” stucco embossed steel flush exterior
  • (3159) 1-3/8” thick stucco embossed steel exterior with minor ribbed pattern
• Steel Gauge: 27 (.016” min) exterior: 28 (.015” min)
• Colors: Standard White, Glacier White, Chocolate, Black, Gray, Trinar White, Almond, Sandstone, Desert Tan, Bronze.

Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

• 14 gauge hinges
• Commercial 10 ball steel rollers with options for nylon tire rollers
• 10,000 cycle torsion springs

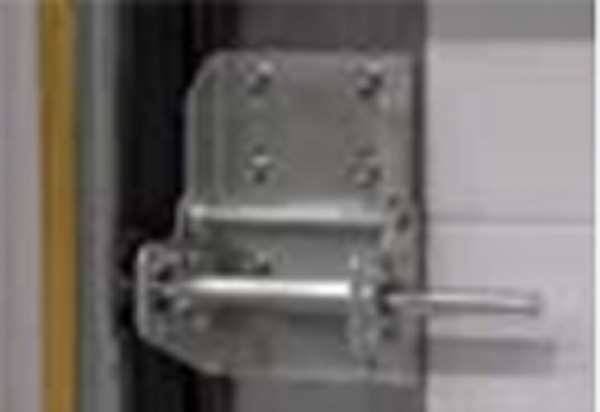

• Steel step plate and lift handle for easy operationInside slide lock for increase security
• 19 gauge steel hinge support plates
• 18-gauge single end stiles; 16-gauge double end stiles
• Galvanized aircraft cables with 7:1 safety factory
• 2” or 3” track in a variety of configurations to meet building design requirements

Commercial Track Applications

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.

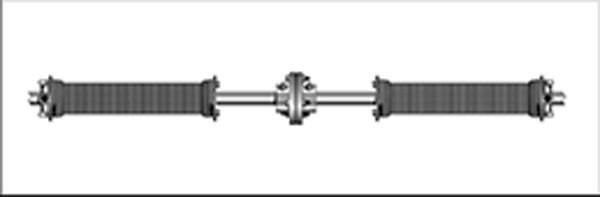

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles.

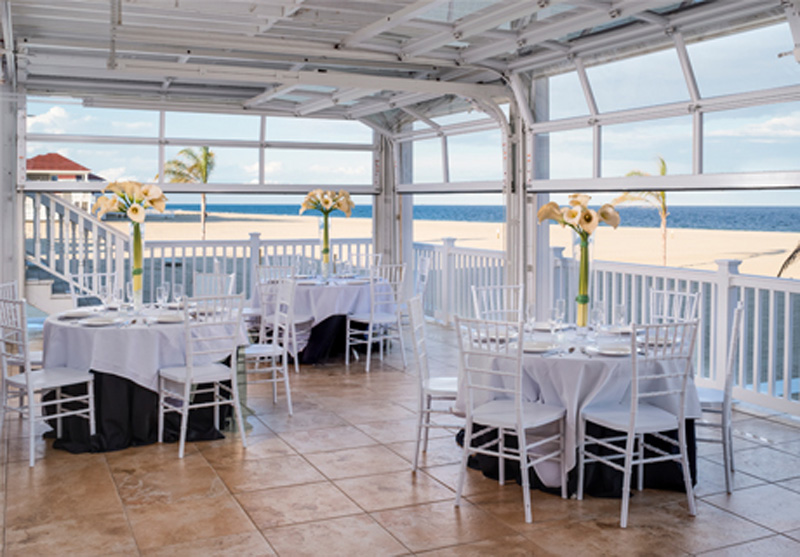

Aluminum Full-View Doors

Design Option - Glazing Material

•
  Clear Glass
•
  Gray Tinted Glass
•
  Bronze Tinted Glass
•
  Mirrored Glass*
•
  Obscure Glass
•
  White Laminate Glass*
•
  Frosted Glass or Acrylic
•
  Clear Acrylic
•
  Gray Acrylic
•
  White Acrylic
•
  Clear Polycarbonate
•
  Bronze Polycarbonate
•
  Aluminum Panel - Color Match

* Mirrored and laminate not available in 1/2"

Glass thicness available in 1/8", 1/4", and 1/2". Tri-wall polycarbonate thickness available in 1/2" (Model 902/903 only) and 5/8" (Model 904 only). Low-E available on insulated glass.

Finishing Options - Colors

•
  Clear Aluminum (Anodized)
•
  Standard White
•
  Bronze (Painted)
•
  Chocolate (Painted)
•
  Bronze (Anodized)*
•
  Black (Anodized)
•
  Dark Bronze (Anodized)*

Custom powder coat, Color Blast®, and anodized finishes available. *Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

Premium finishing options include:

• RAL color powder coat
• 187 different powder coat offerings
• Custom Colors with Color Blast® Garage Door Paint System
• Bronze, dark bronze, black or custom color anodized finishing

Performance Options - Hardware

•

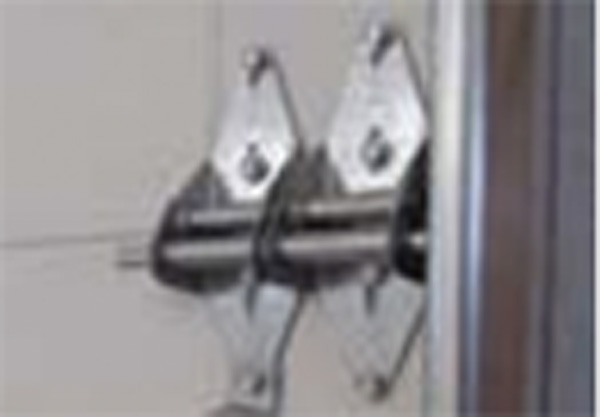

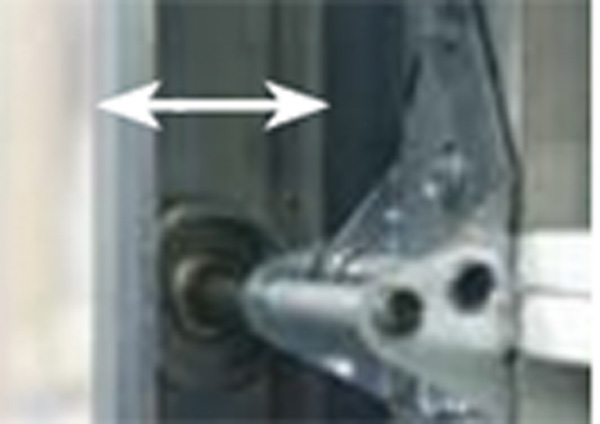

  Double-end hinge
•
  3" Track
•
  High performance hardware features 10 gauge end hinges, heavy-duty top bracket, and 3" sealed roller with 5/8" stem.
•
  25,000, 50,000, or 100,000 cycle springs available.
•

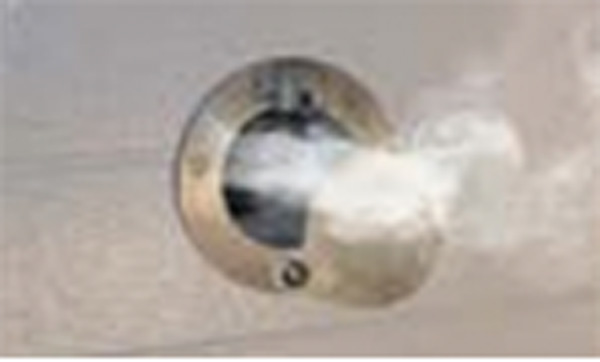

  Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
•
  WindCode® reinforcement available up to W2 design pressure (DP) 14 PSF, depending on size. Doors tested 50% greater than DP.
•
  Upgrade your standard door with industrial components.

Custom Options

•
  Carry-away, roll-away, or swing-up mullions are available on select sizes

Steel Ful-View Doors

Design Options - Windows

• 19.5" x 16"
• 42" x 16"
• 1/8" Tempered
• 1/8" Tempered Frosted
• 1/4" Insulated Tempered
• 1/4" Insulated Tempered Frosted

Finishing Options - Colors

•
  Standard White
•
  Chocolate
•
  Black
•
  Gray
•
  TRINAR® White

Premium finishing options include:

• Custom Colors with Color Blast® Garage Door Paint System
• Bronze, dark bronze, black or custom color anodized finishing

Performance Options - Hardware

•
  Double-end hinge
•
  3" Track
•
  High performance hardware features 10 gauge end hinges, heavy-duty top bracket, and 3" sealed roller with 5/8" stem.
•
  25,000, 50,000, or 100,000 cycle springs available.
•
  Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
•
  WindCode® reinforcement available up to W2 design pressure (DP) 14 PSF, depending on size. Doors tested 50% greater than DP.
•
  Upgrade your standard door with industrial components.

Custom Options

•
  Carry-away, roll-away, or swing-up mullions are available on select sizes
•
  Break-away sections
