Canyon Ridge® Louver

insulated garage doors with composite louver overlays

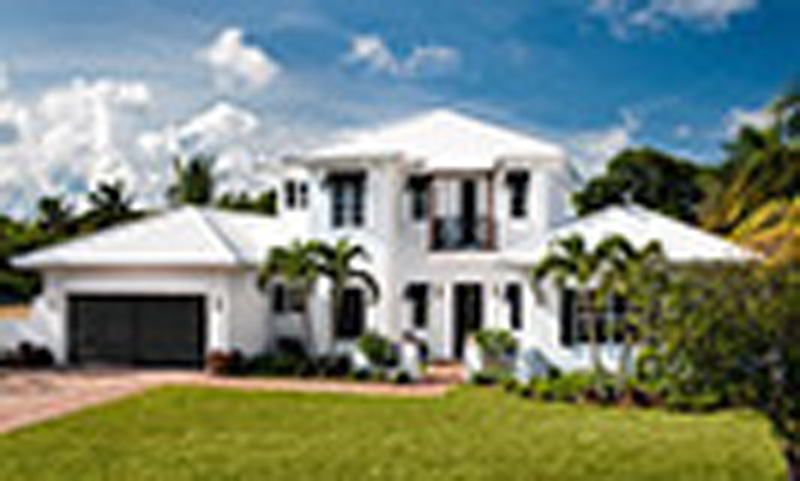

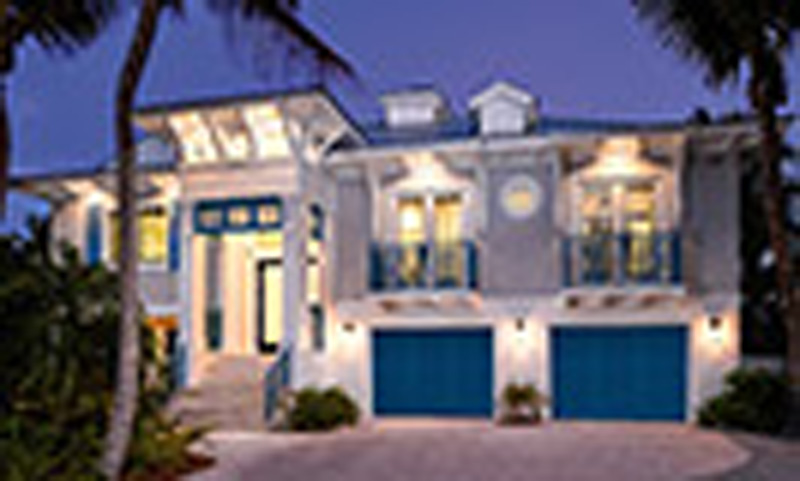

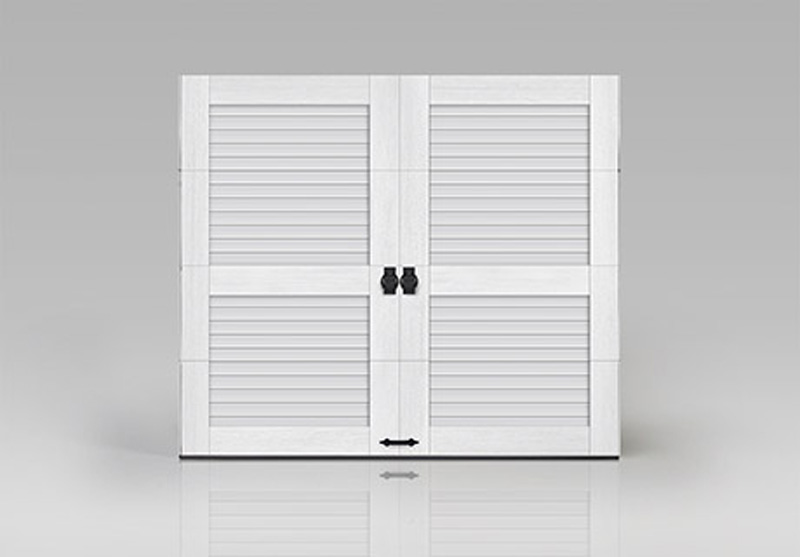

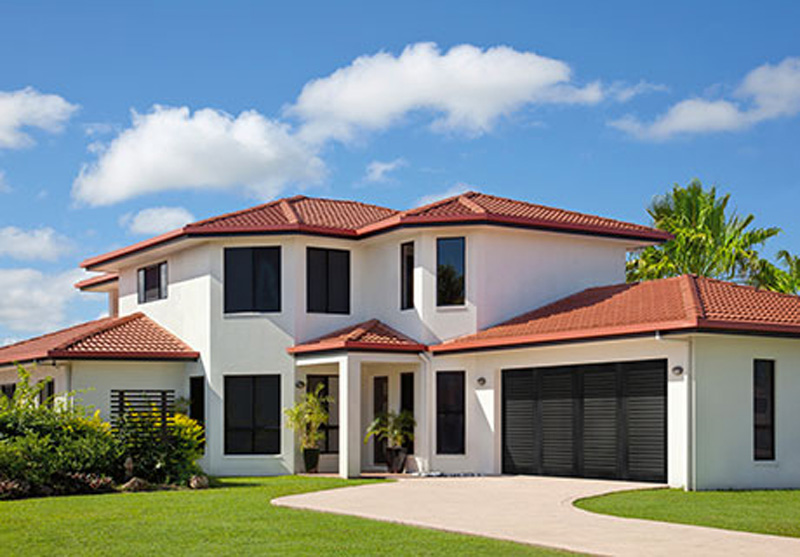

Add charm to your home with plantation shutter style Canyon Ridge® Louver garage doors. This versatile design perfectly complements coastal or colonial homes, and is a standout piece on traditional exteriors or modern farmhouses. Get the look of authentic louver doors with the convenience of upward operation.

Overview

Clopay Canyon Ridge® Louver garage doors are inspired by plantation shutters. These doors are constructed with steel for strength and durability, and molded composite overlays for a truly authentic look. These doors feature:

5-layer steel base with faux wood cladding and overlay wood-look composite cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate. Colors include: Walnut, Dark, Medium, Slate, Black, White, and Primed. (Additional Options)2" Intellicore® polyurethane insulation with a thermal break. R-Values up to 20.4. WINDCODE® reinforcement product available for high wind load applications.

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 - Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations

Construction

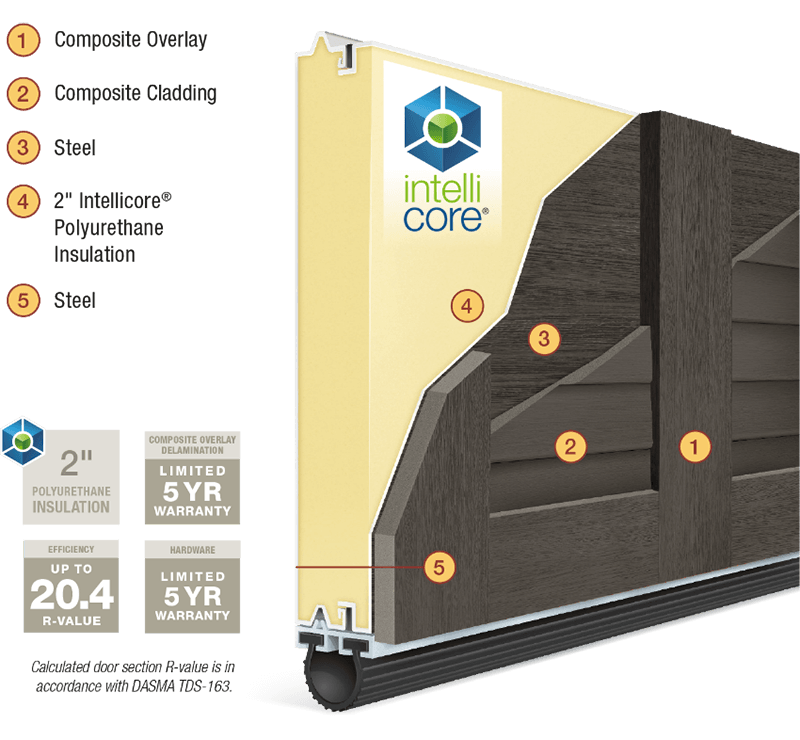

Clopay® Canyon Ridge® Louver garage doors are built five layers strong. The faux wood-look composite overlay and cladding surfaces are low maintenance, durable and won’t rot, warp or crack.

Warmer. Quieter. Stronger.

Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. ( Details)

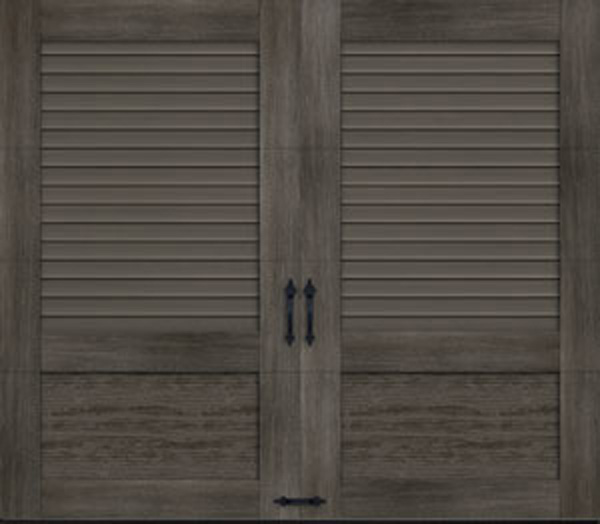

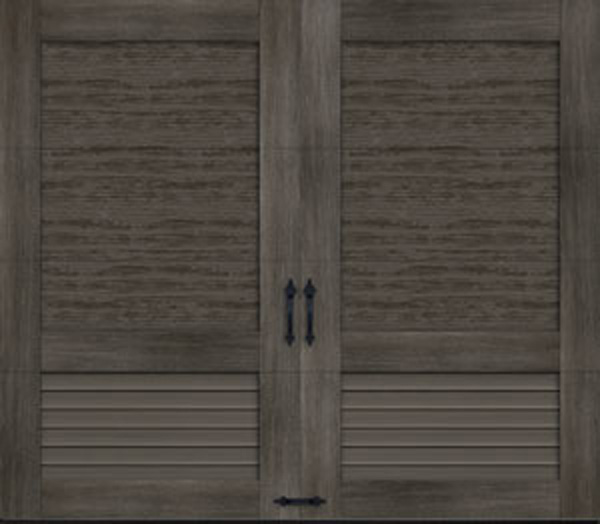

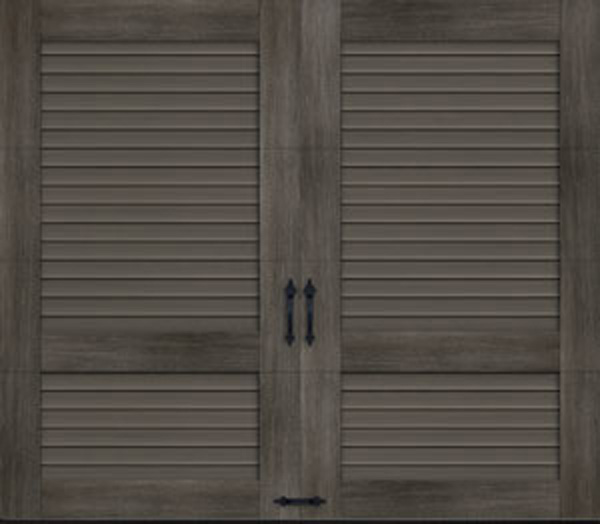

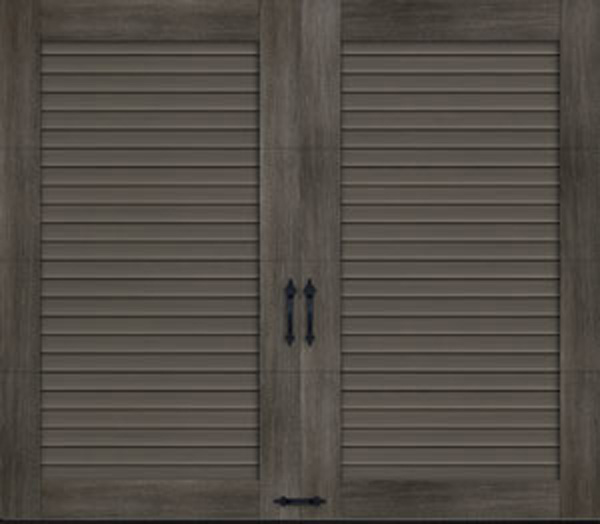

  • Door sample shown in Slate Finish.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.
  • Window grilles are removable for easy cleaning.
  • Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

Options

Customize your Clopay® Canyon Ridge® Louver garage door to make it your own. Designs, colors and windows create the perfect look. Choose Mahogany Louver cladding and pair it with either Mahogany or Clear Cypress overlays.

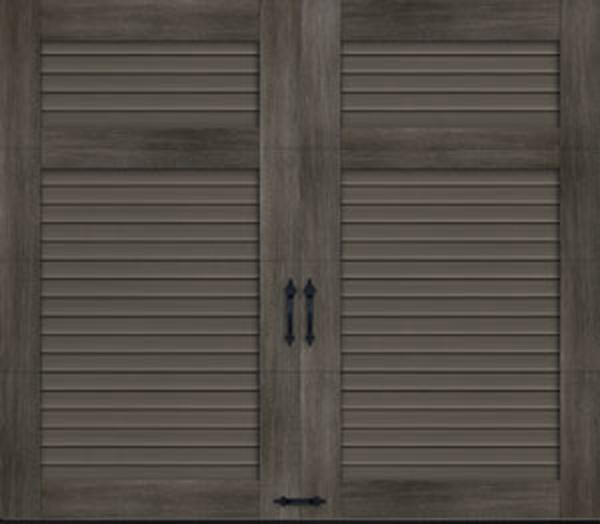

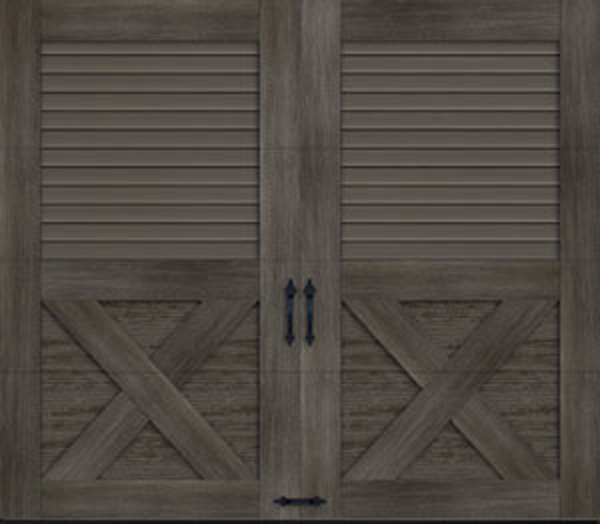

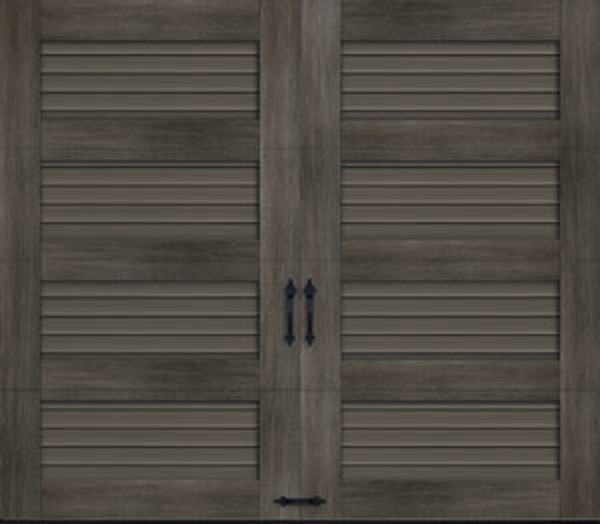

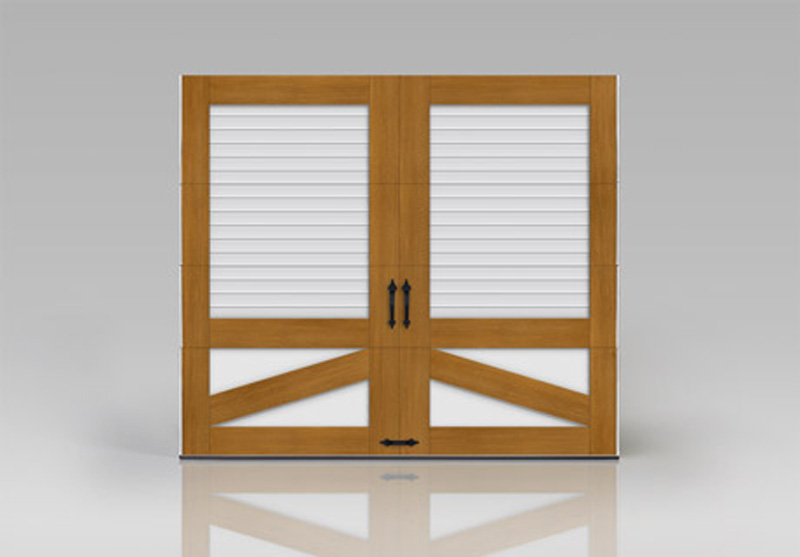

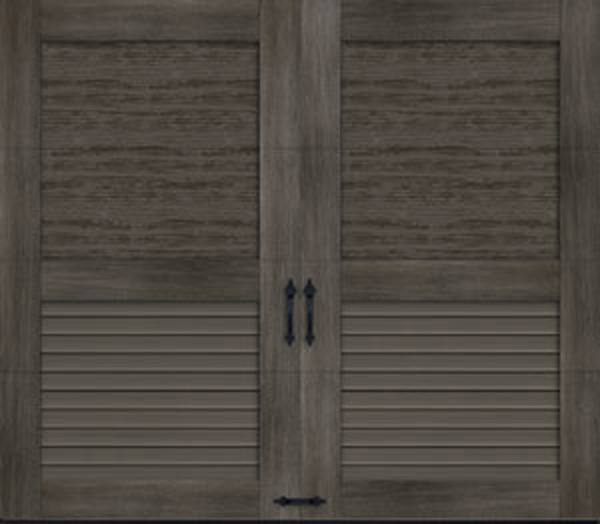

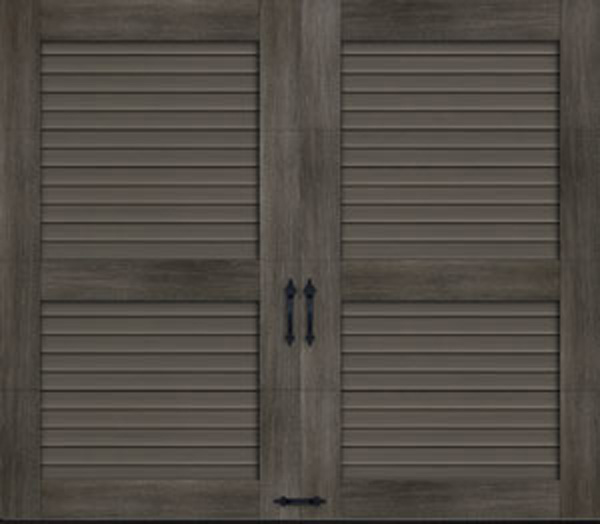

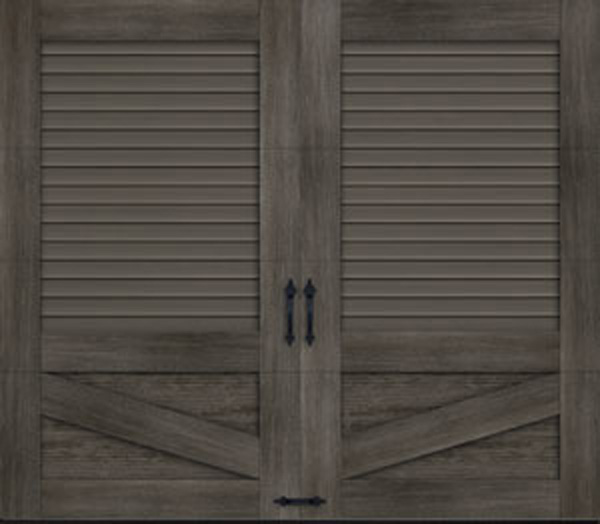

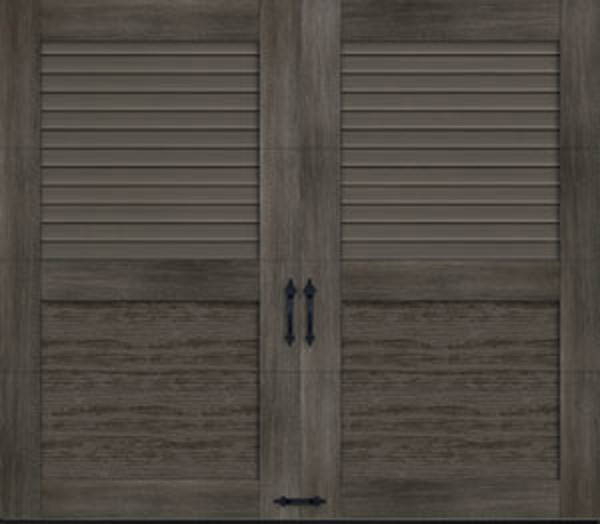

Series 4


  • Design 41

  • Design 42

  • Design 43

  • Design 44

  • Design 45

  • Design 46

  • Design 47

Series 5


  • Design 51

  • Design 52

  • Design 53

  • Design 54

  • Design 55

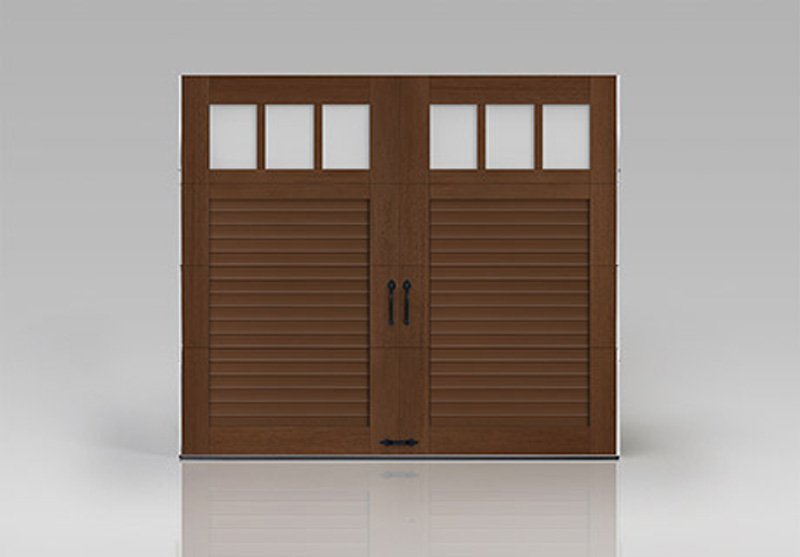

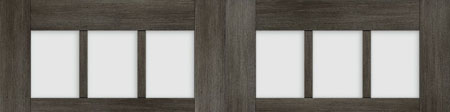

Top Sections

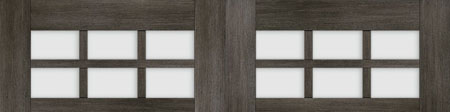

Series 4 & 5 Window Designs


  • Rectangle 11

  • Rectangle 13

  • Rectangle 14

  • Square 23

  • Square 24

Material Options

Composite Cladding/Base Materials


  • Clear Cypress

  • Mahogany

Composite Overlay Materials


  • Clear Cypress

  • Mahogany

Composite Cladding and Overlay material options may be mixed and matched.

Colors


  • Medium Finish

  • Dark Finish

  • Walnut Finish

  • Slate Finish

  • Black Finish

  • White Finish

  • Primed (No Finish)

* Available on select models

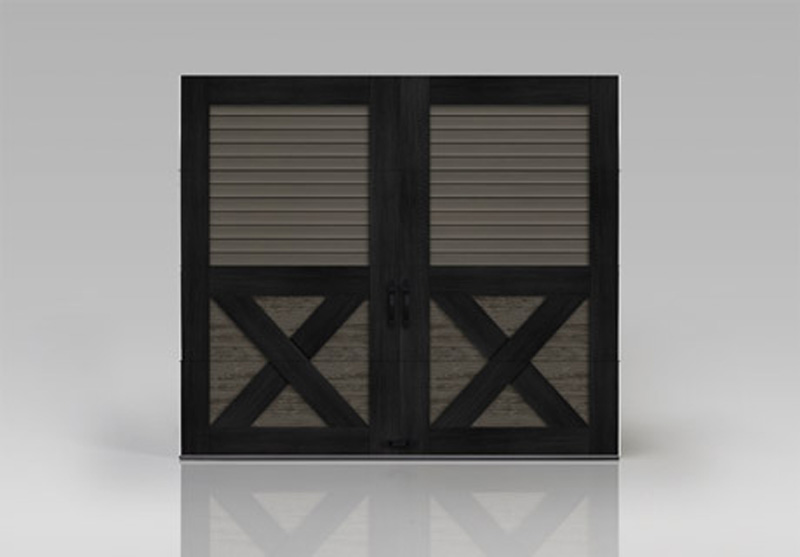

Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).

Hardware Designs

Handles


  • Spade Lift Handles (included)

  • Spear Lift Handles

  • Colonial Lift Handles

  • Decorative Lift Handles

  • Ring Door Knocker

  • Escutcheon Plate(s)

  • Twisted "L" Handles

Hinges


  • Spade Strap Hinge

  • Spear Strap Hinge

  • Colonial Strap Hinge
