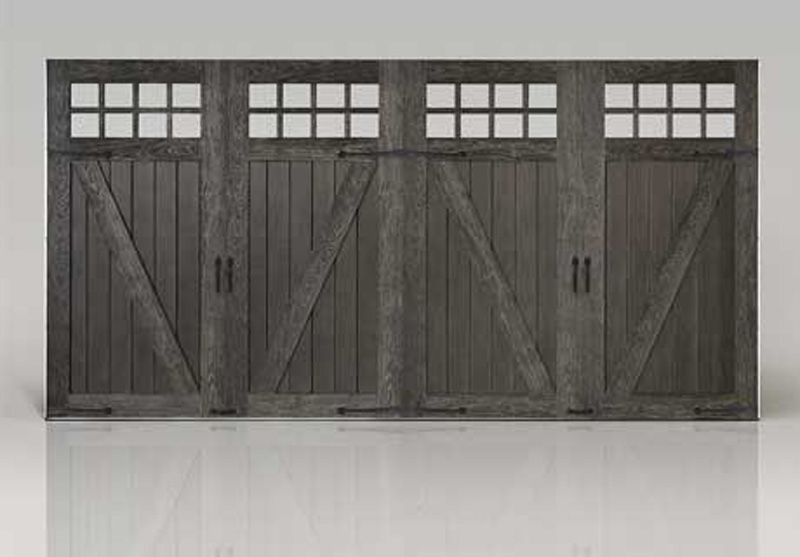

Canyon Ridge® Carriage House (5-layer)

Insulated carriage house garage doors with faux wood-look composite overlays.

Add character and charm to your home with Clopay's Canyon Ridge® Carriage House (5-Layer) garage door. Enjoy the authentic look of swing-out coach house doors paired with the modern-day functionality of upward operation. Not only beautiful, these doors provide quiet operation and energy efficiency for years to come.


Clopay Canyon Ridge® Carriage House (5-Layer) garage doors take inspiration from the coach house designs of yesteryear and bring them to life with today's technology. These doors are constructed with steel for strength and durability, and molded composite materials for beauty and realism. These doors feature:

  • 5-layer construction: steel + insulation + steel + composite cladding + composite overlay.
  • Faux wood-look composite cladding and overlay materials are molded from actual wood pieces to reproduce the natural texture and intricate grain patterns of the species they emulate.
  • Colors include: Walnut, Dark, Medium, Slate, Black, White and Primed.
  • 2" Intellicore® polyurethane insulation with a thermal break. R-Value of 20.4.
  • WINDCODE® reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 - Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations


Clopay® Canyon Ridge® Carriage House (5-Layer) garage doors are built five layers strong. The faux wood-look composite overlay and cladding surface are low maintenance, durable and won't rot, warp or crack.

Warmer. Quieter. Stronger.

Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

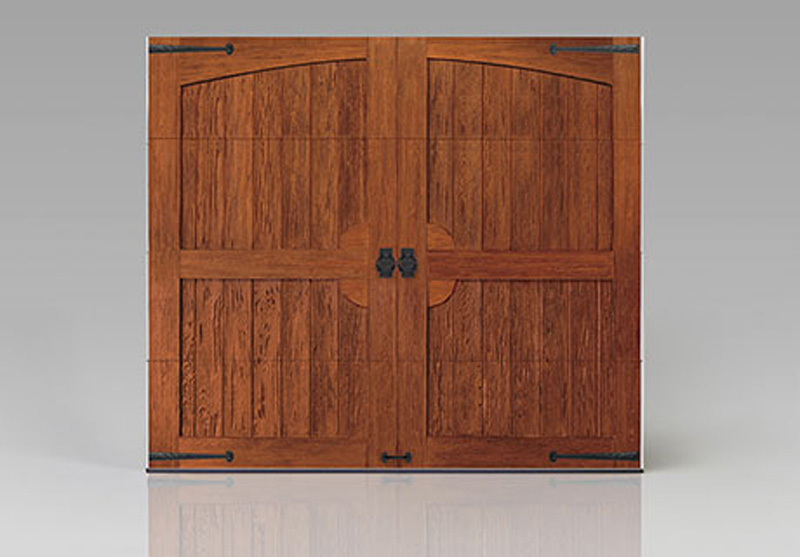

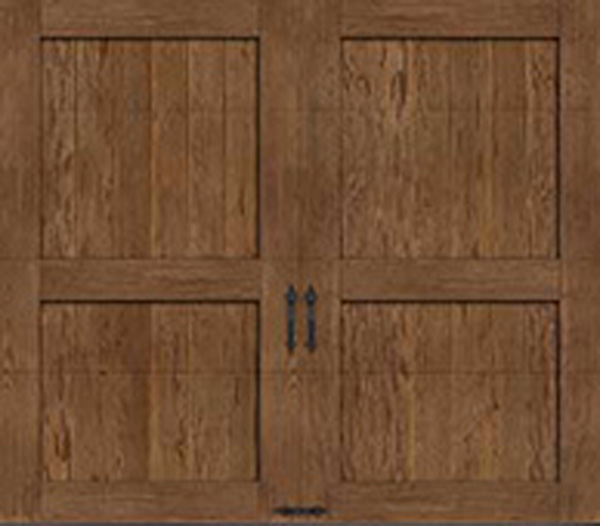

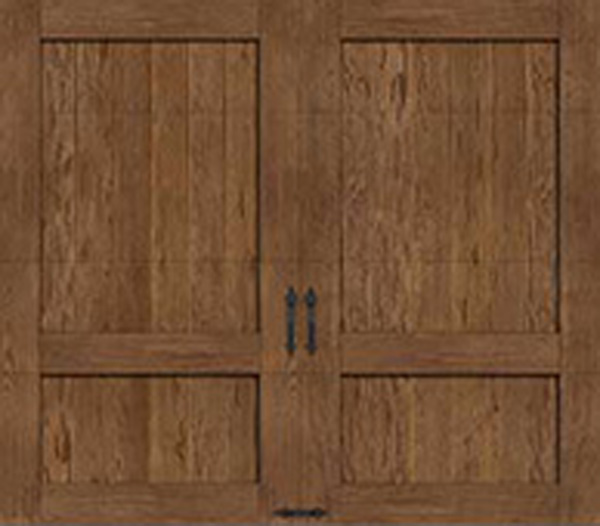

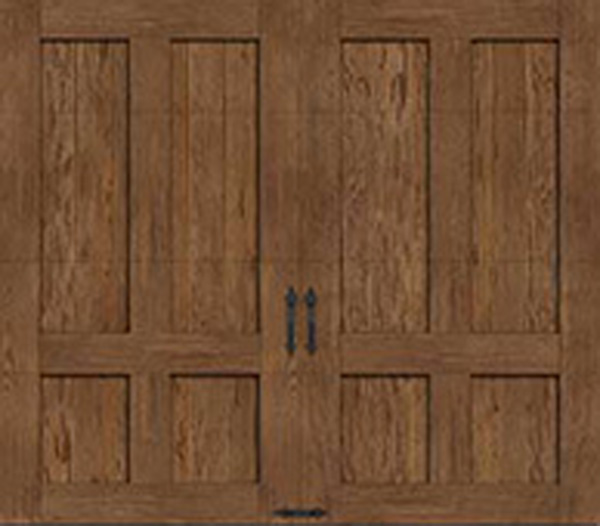

  • Door sample shown in Walnut Finish.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • High performance nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Heavy-duty 14 gauge steel hinges and brackets for smooth and worry-free operation.

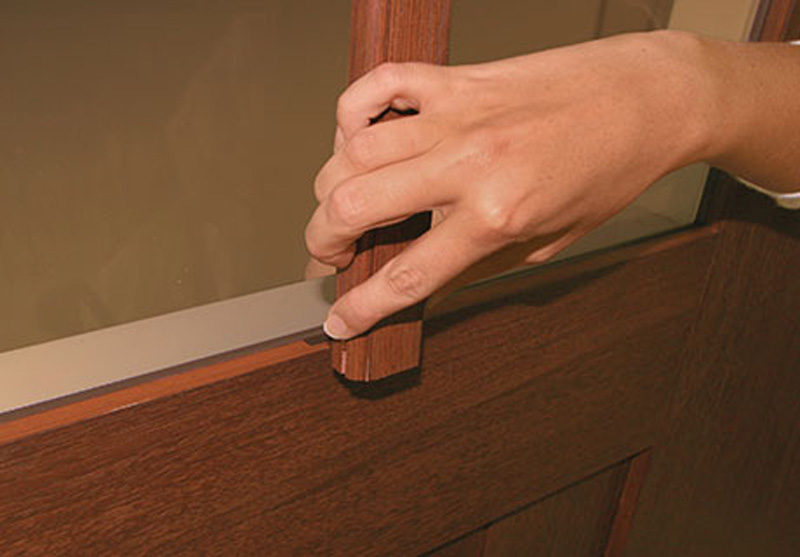

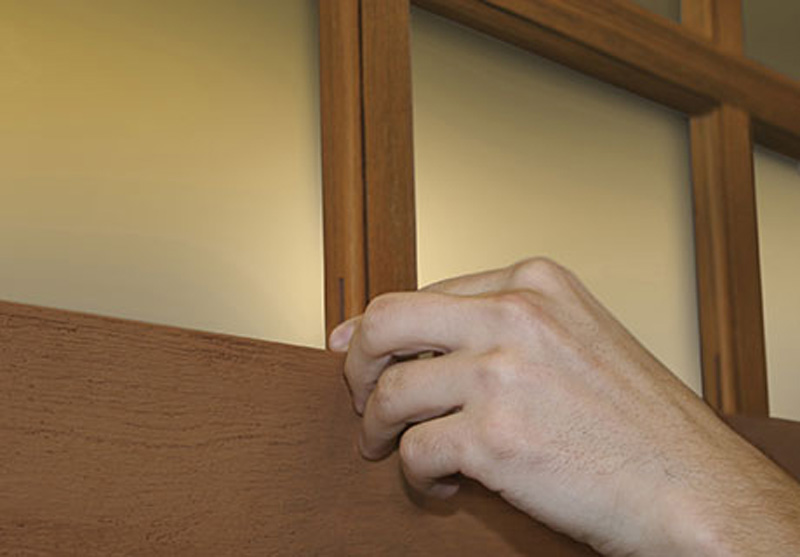

  • Window grilles are removable for easy cleaning.
  • Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)


Customize your Clopay® Canyon Ridge® Carriage House (5-Layer) garage door to make it your own. Designs, colors, textures and windows create the perfect look. If you are in search of more color options, our

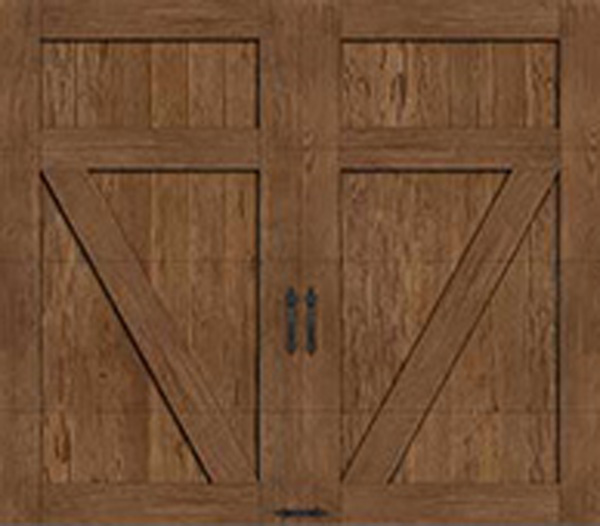

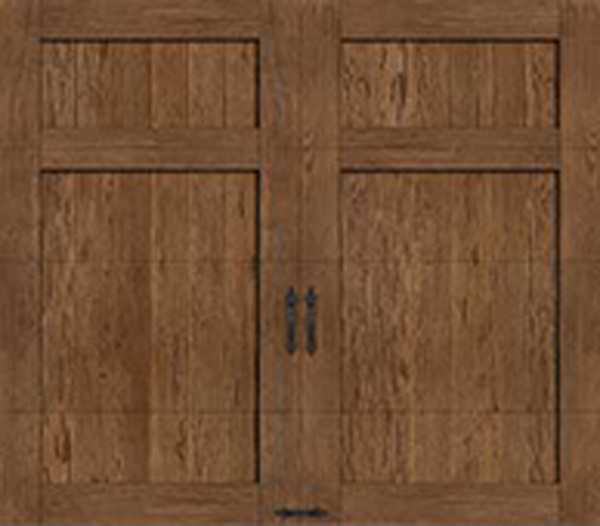

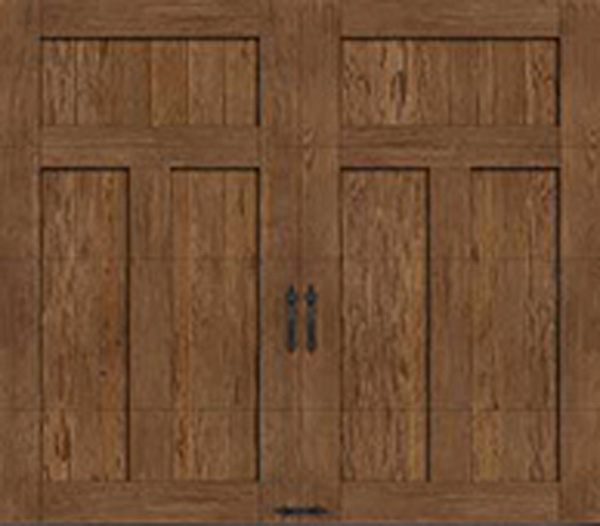

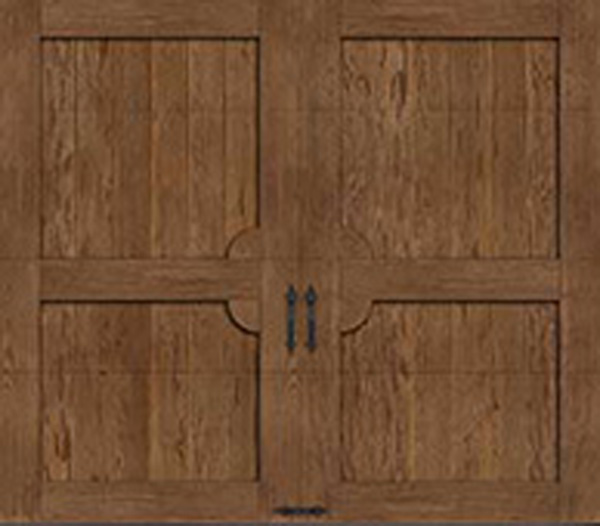

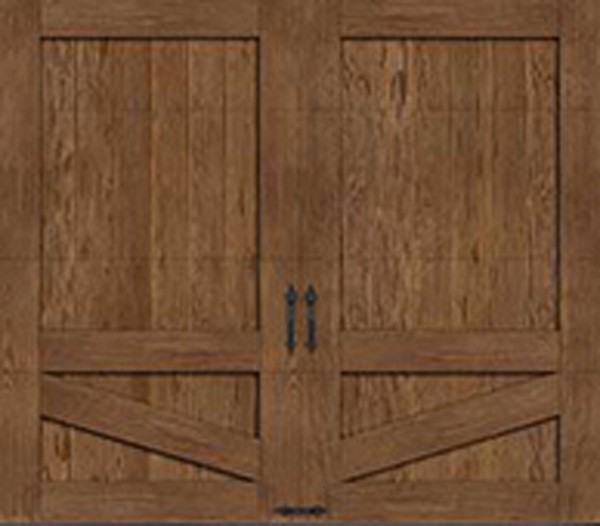

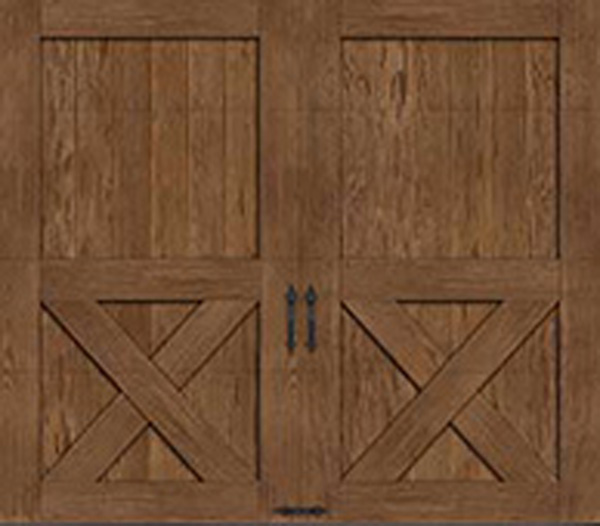

Series 1

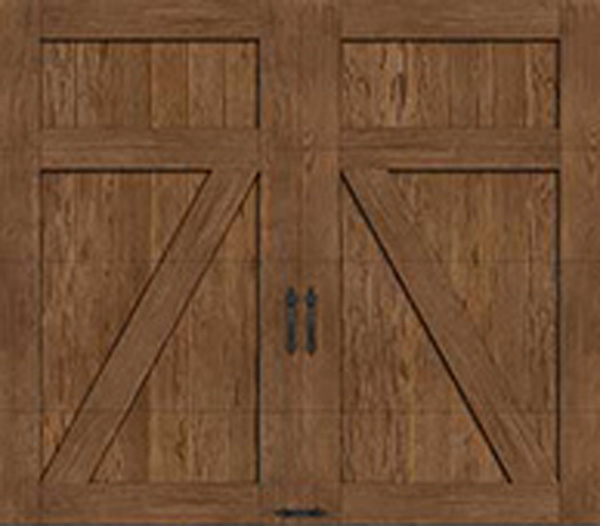

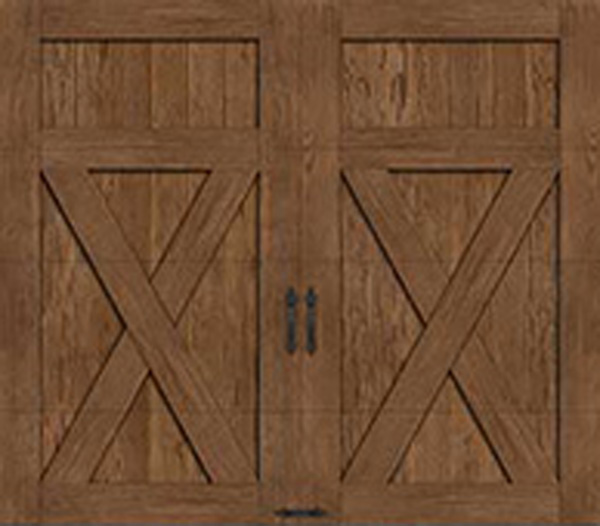

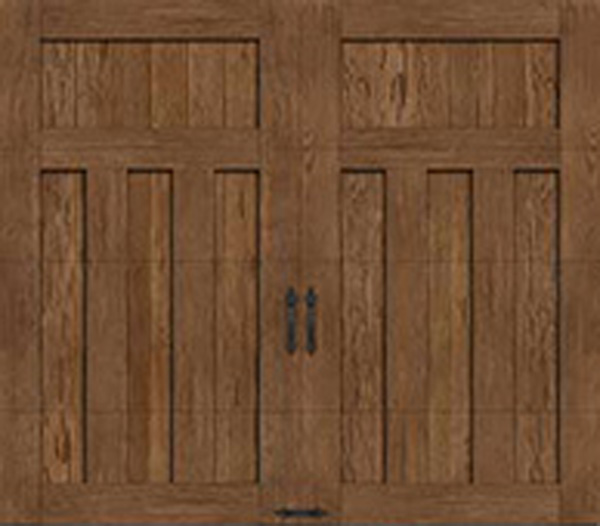

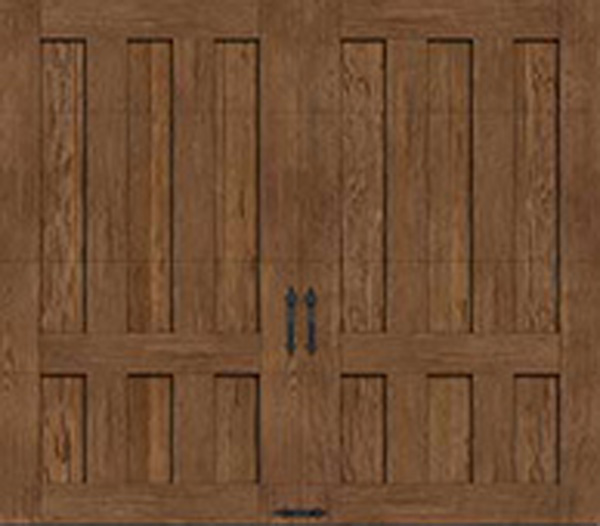

  • Design 01

  • Design 11

  • Design 12

  • Design 13

Series 2

  • Design 21

  • Design 22

  • Design 23

Series 3

  • Design 31

  • Design 32

  • Design 33

  • Design 34

  • Design 35

  • Design 36

  • Design 37

  • Design 38

Top Sections

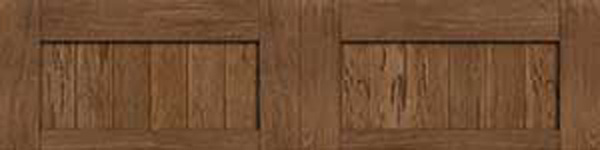

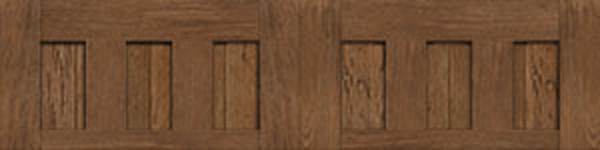

Solid Top Sections (Series 1 & 2)

  • Top 11

  • Top 12

  • Top 13

  • Arch 1

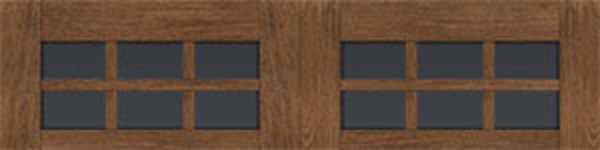

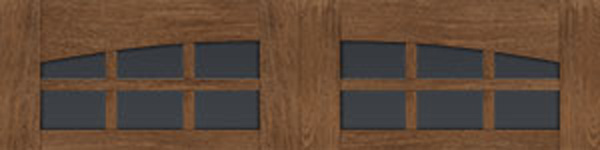

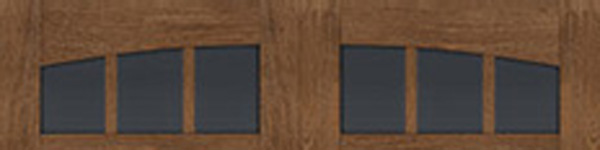

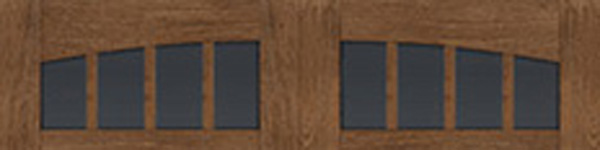

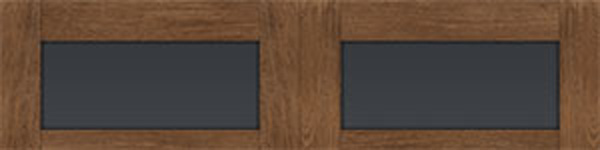

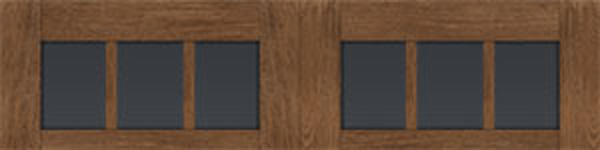

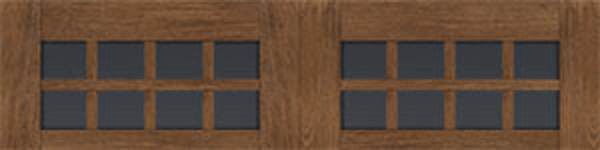

Window Designs (Series 1 & 2)

  • Rec 11

  • Rec 13

  • Rec 14

  • Sq 23

  • Sq 24

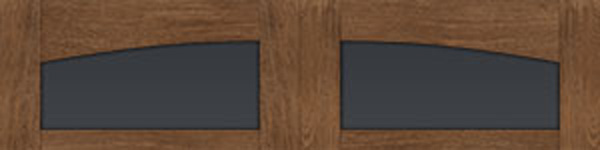

  • Arch 1

  • Arch 3

  • Arch 4

  • Arch 13

  • Arch 14

Double Top Sections

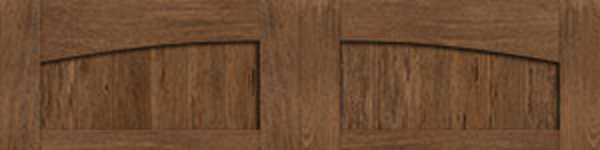

  • Arc 1a Solid (Double Door)

  • Arc 1a Window (Double Door)

  • Arc 3a Windows (Double Door)

  • Arc 4a Windows (Double Door)

  • Arc 13a Windows (Double Door)

  • Arc 14a Windows (Double Door)

Specialty Glass Options

  • Seeded

  • Rain

  • Frosted

  • Obscure

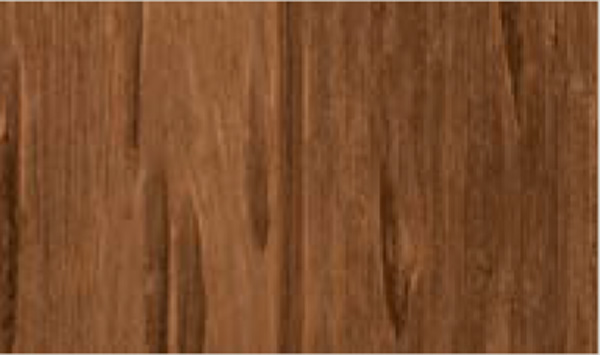

Material Options

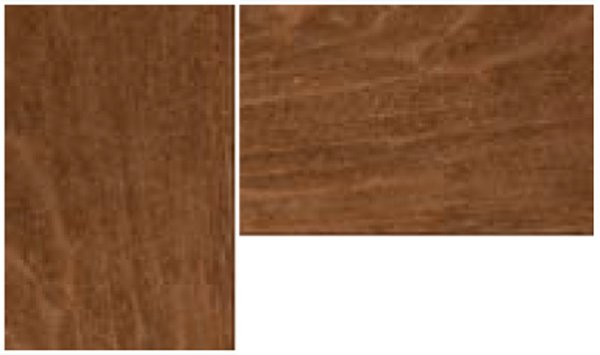

Composite Cladding Material

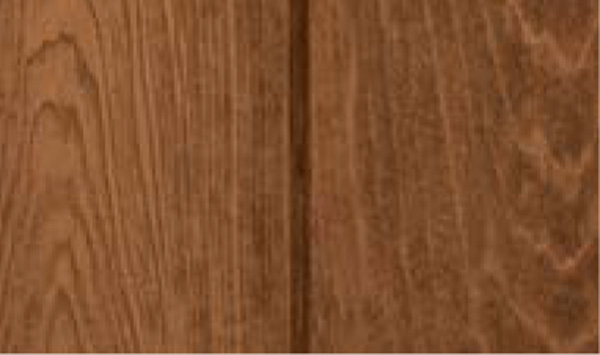

  • Clear Cypress

  • Mahogany

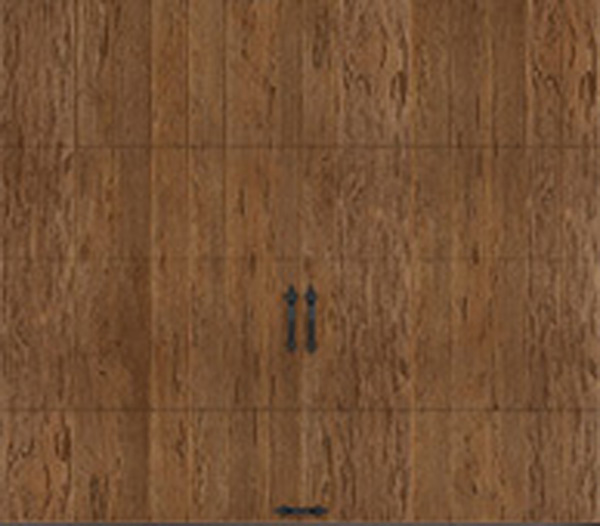

  • Pecky Cypress

Composite Overlay Materials

  • Mahogany

  • Clear Cypress


  • Medium Finish
  • Dark Finish
  • Walnut Finish

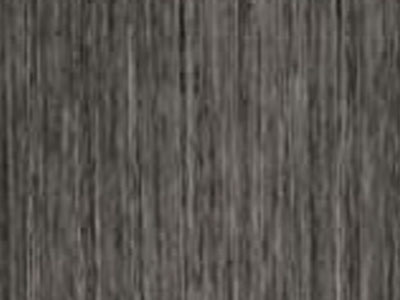

  • Slate Finish
  • Black Finish
  • White Finish
  • Primed (No Finish)

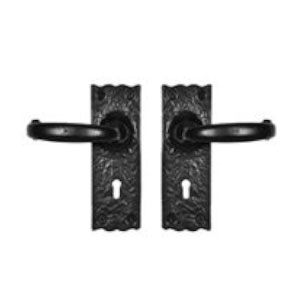

Hardware Designs

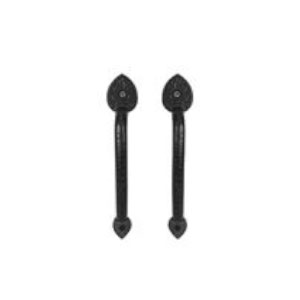

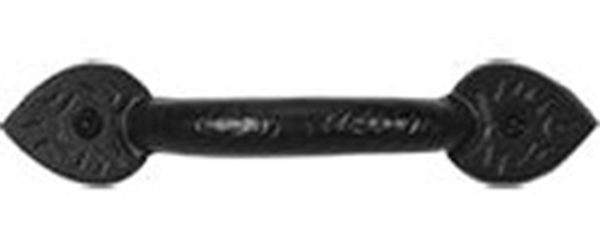

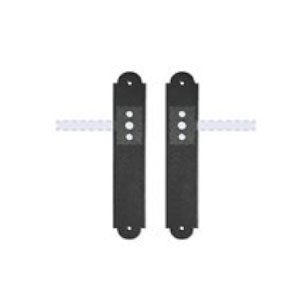

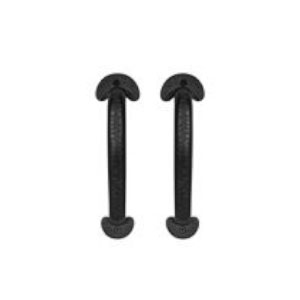

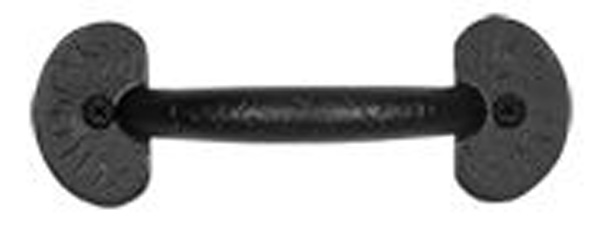

  • Spade Lift Handles (Included)
  • Spear Lift Handles
  • Colonial Lift Handles

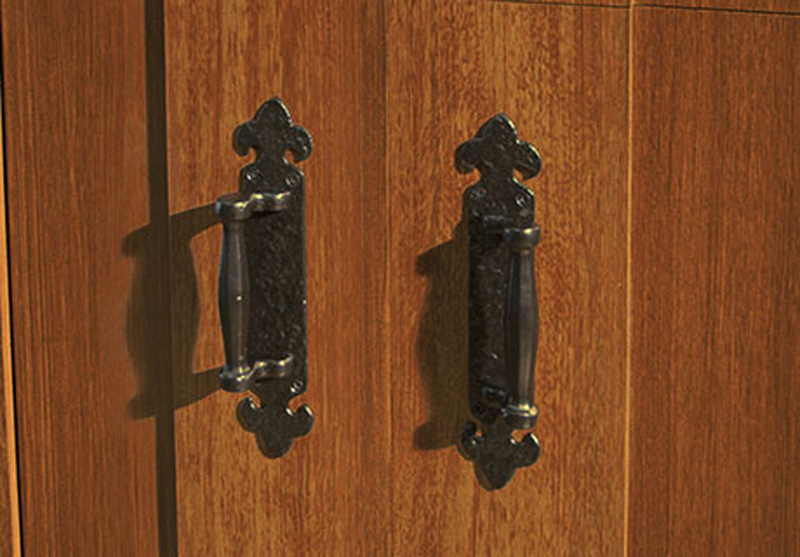

  • Decorative Lift Handles

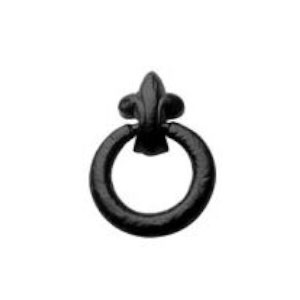

  • Ring Door Knocker
  • Escutcheon Plate(s)

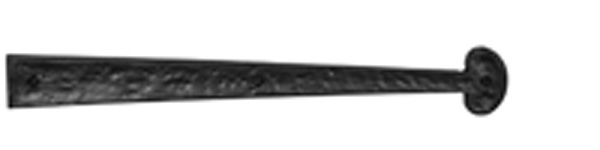

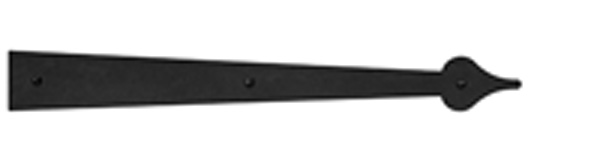

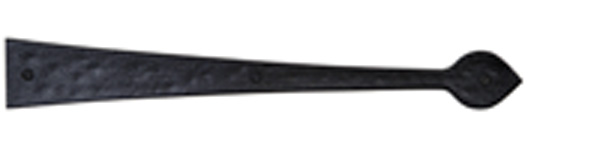

  • Spade Strap Hinge
  • Spear Strap Hinge
  • Colonial Strap Hinge


  • Spade Step Plate
  • Spear Step Plate
  • Colonial Step Plate
