Coachman®

Authentic looking insulated steel and composite carriage house garage doors.

The perfect blend of beauty and practicality, these carriage house doors look like wood, but they are actually crafted of multiple layers of durable, low maintenance steel and insulation topped with woodgrain textured composite overlay.

Overview

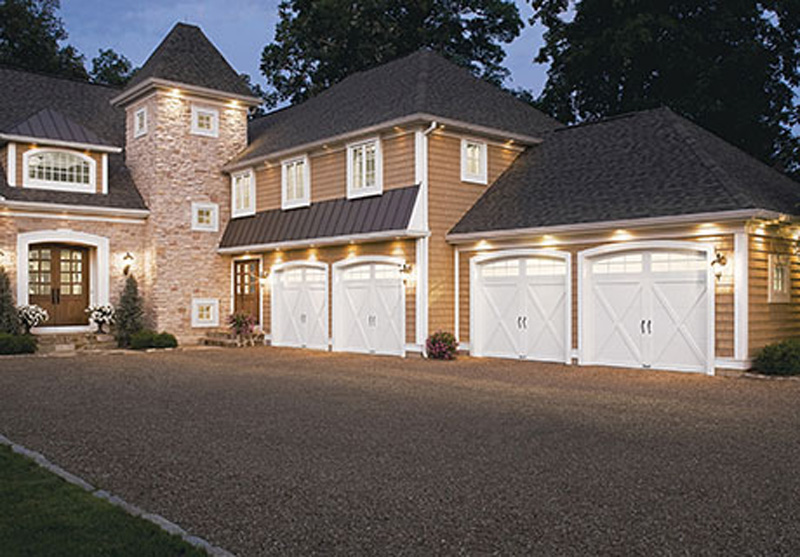

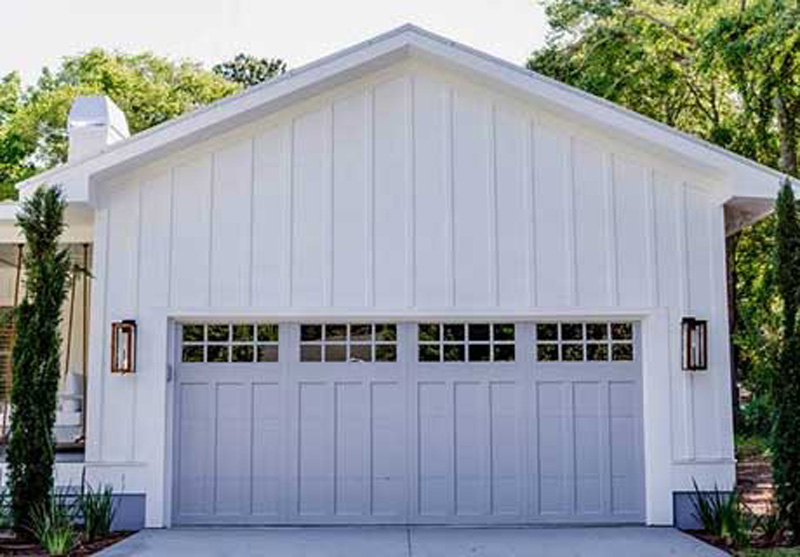

Coachman® garage doors feature the charming appearance of an old-fashioned swing-out carriage house door, but offer the built-in convenience of a modern overhead garage door. Throughout the design and construction, there is a recurring blend of beauty and practicality that is evident in the details, like the attractive yet durable steel and composite construction.

Construction Overview

  • Steel carriage house doors with 4-layer construction.
  • Insulation options include 2" Intellicore® polyurethane, 2" polystyrene or 1-3/8" polystyrene insulation. The R-values of these garage doors range from 6.5 to 18.4.
  • The steel skins of these doors are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat.
  • WINDCODE® reinforcement product available for high wind load applications. (Click for details)

Design Overview

  • Four factory finish paint and overlay colors. Overlay and base colors can be mixed to achieve desired look.
  • Many glass options, including clear, seeded, rain, obscure, frosted and insulated.
  • Attractive beveled edge clip-in window grilles are removable for easy cleaning.
  • Comes complete with spade lift handles and step plates. Additional decorative hardware options available.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

  • California SB 1013
  • Washington HB 1112 - Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations.

LIFTMASTER® ELITE SERIES™

Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.

Construction

Warmer. Quieter. Stronger.

Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability.

  • Composite overlay
  • Steel
  • Insulation with thermal break (2" Intellicore® polyurethane, 2" polystyrene or 1-3/8" polystyrene insulation. R-values from 6.5 to 18.4)
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • Grilles are removable for easy cleaning.
  • Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Door sample shown in Standard White.
  • Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

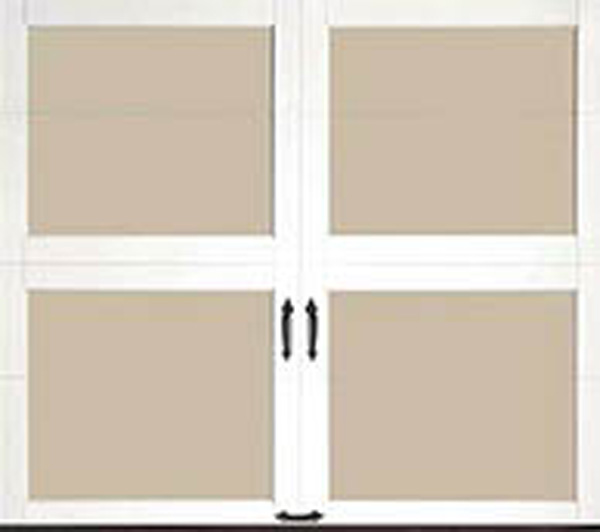

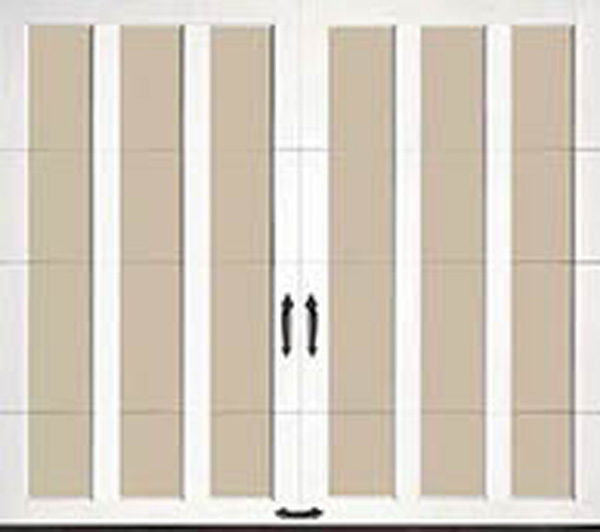

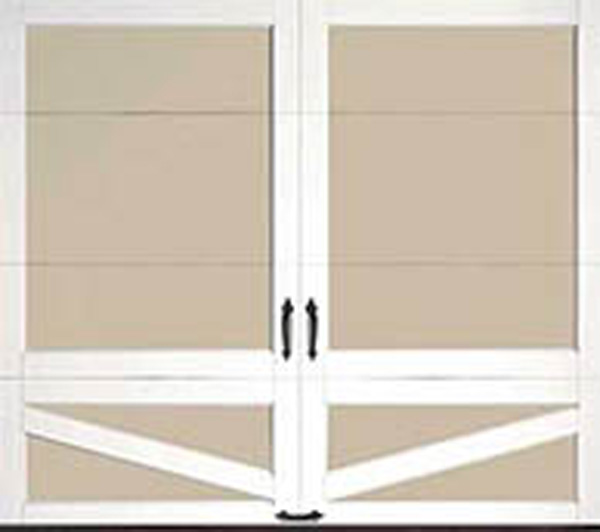

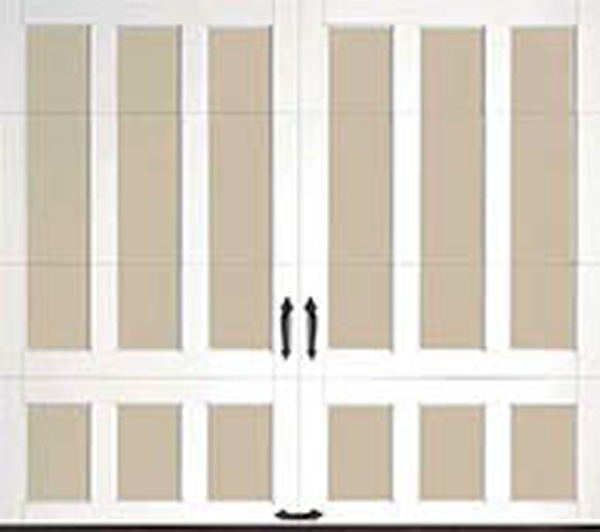

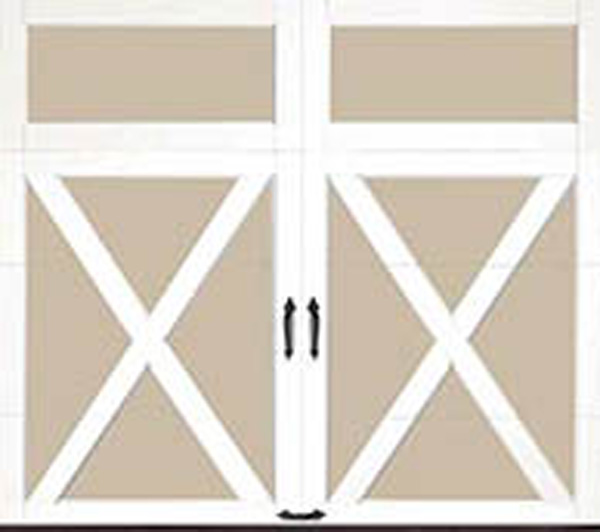

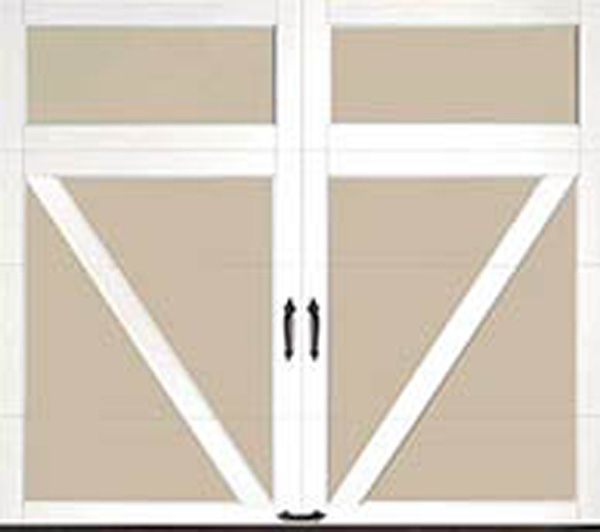

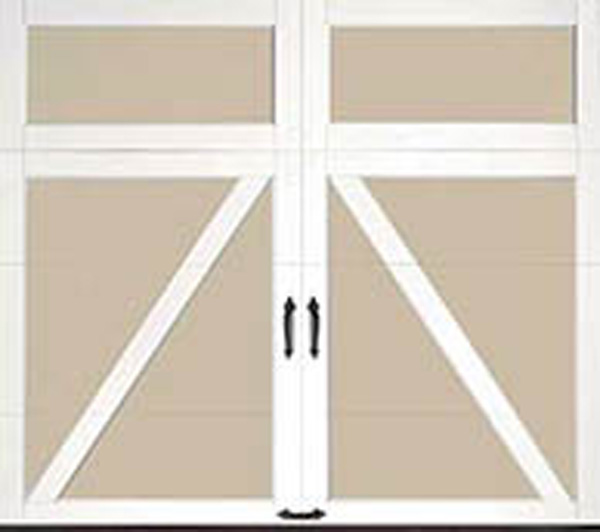

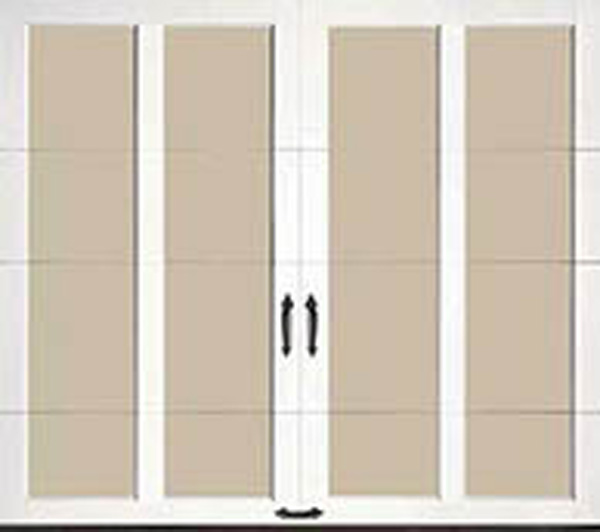

Options

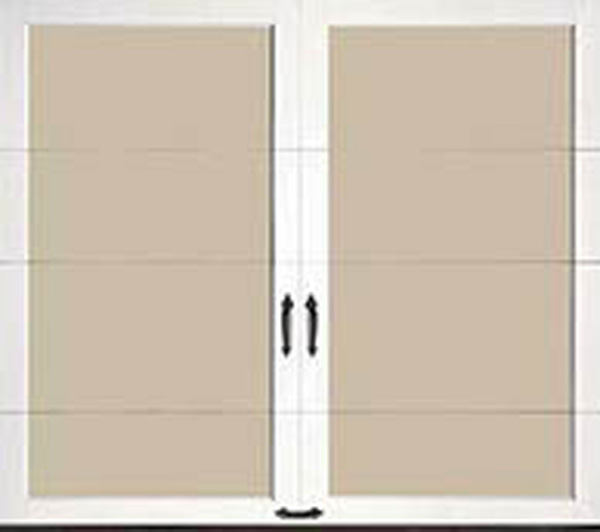

Series 1


  • Design 11

  • Design 12

  • Design 13

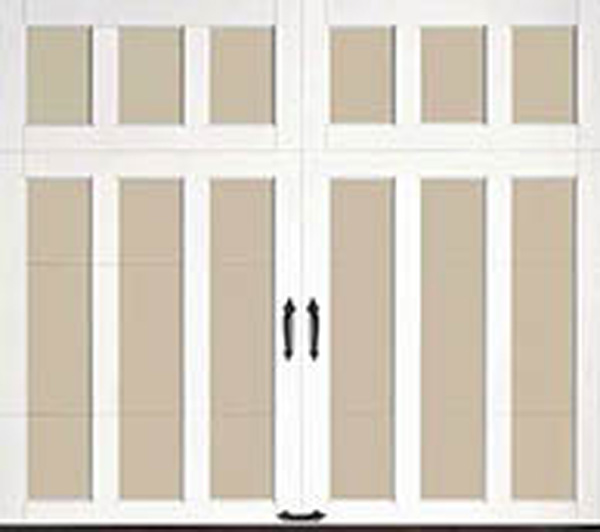

Series 2


  • Design 21

  • Design 22

  • Design 23

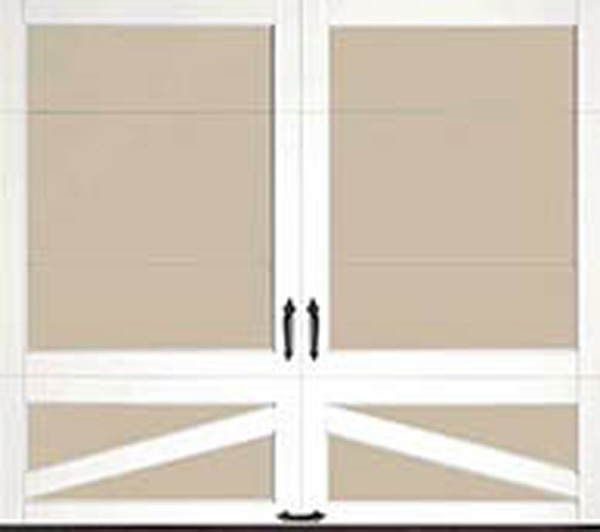

Series 3


  • Design 31

  • Design 32

  • Design 33

  • Design 34

  • Design 35

  • Design 36

Series 4


  • Design 41

  • Design 42

  • Design 43

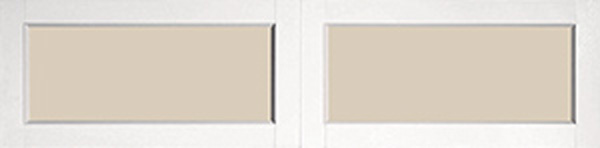

Top Sections

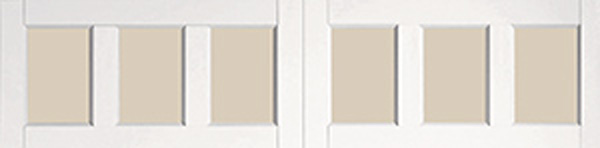

Solid Top Sections


  • Top 11

  • Top 12

  • Top 13

  • Arch 1

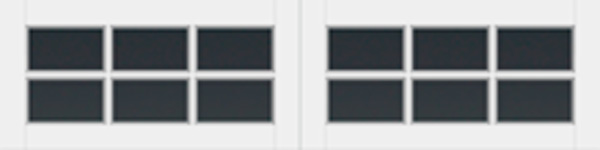

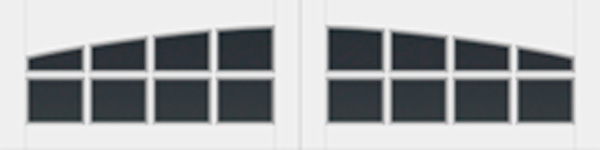

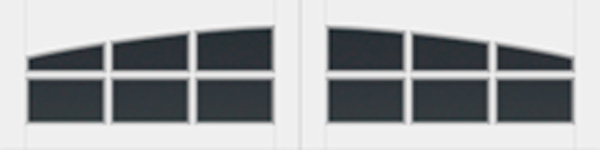

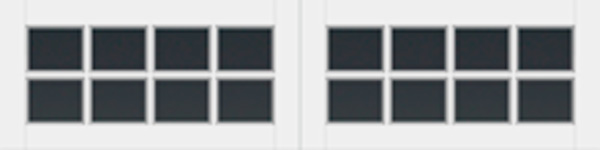

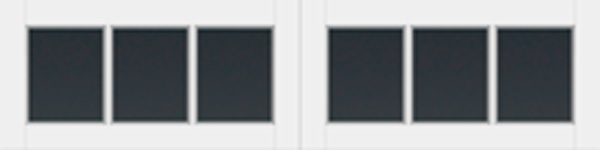

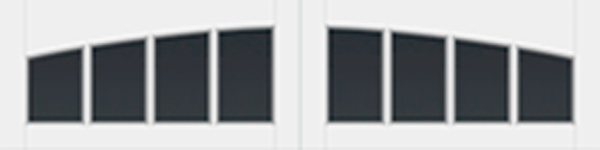

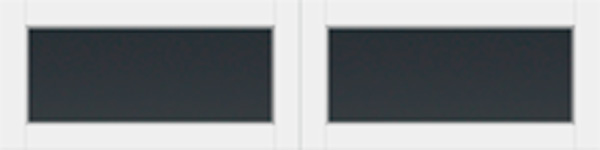

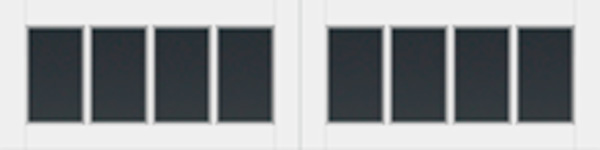

Window Designs


  • Rec 11

  • Rec 13

  • Rec 14

  • Sq 23

  • Sq 24

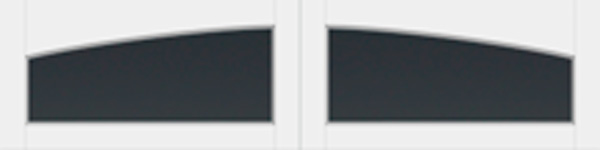

  • Arch 1

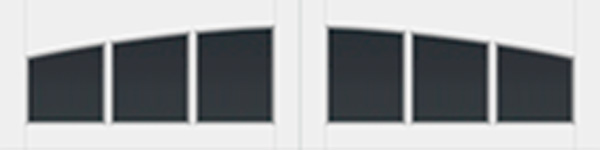

  • Arch 3

  • Arch 4

  • Arch 13

  • Arch 14

Double Top Sections


  • Arc 1a Solid (Double Door)

  • Arc 1a Window (Double Door)

  • Arc 3a Windows (Double Door)

  • Arc 4a Windows (Double Door)

  • Arc 13a Windows (Double Door)

  • Arc 14a Windows (Double Door)

Specialty Glass Options


  • Seeded

  • Rain

  • Frosted

  • Obscure

Colors


  • White Overlay / White Base

  • White Overlay / Almond Base

  • White Overlay / Desert Tan Base

  • White Overlay / Sandstone Base

  • Almond Overlay / Almond Base

  • Almond Overlay / White Base

  • Almond Overlay / Desert Tan Base

  • Almond Overlay / Sandstone Base

  • Desert Tan Overlay / Desert Tan Base

  • Desert Tan Overlay / White Base

  • Desert Tan Overlay / Almond Base

  • Desert Tan Overlay / Sandstone Base

  • Sandstone Overlay / Sandstone Base

  • Sandstone Overlay / White Base

  • Sandstone Overlay / Almond Base

  • Sandstone Overlay / Desert Tan Base

Two-tone option available.

Hardware Designs

Handles


  • Spade Lift Handles (included)

  • Spear Lift Handles

  • Colonial Lift Handles

  • Decorative Lift Handles

  • Ring Door Knocker

  • Escutcheon Plate(s)

  • Twisted "L" Handles

Hinges


  • Spade Strap Hinge

  • Spear Strap Hinge

  • Colonial Strap Hinge

Plates


  • Spade Step Plate (included)

  • Spear Step Plate

  • Colonial Step Plate
